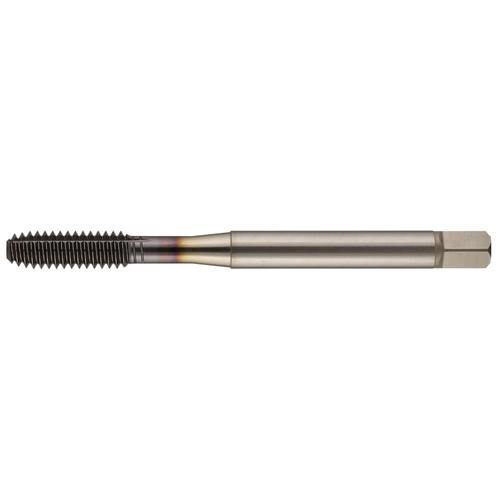

3-56 TICN ZELX HP-RZ H3 BOTT TAP
Item #: YM20386803
Brand: YMW Taps
Model #: 386803
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Application | Blind Hole |
| Thread Diameter Size (TDZ) | #3 |
| Applicable Material | Steel |
| Overall Length (OAL) | 1.969″ |
| Coating | TiCN |
| Usable Length (LU) | 0.49″ |
| Threads per Inch (TPI) | 56 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Chamfer | 2P |
| Thread Tolerance Class (TCTR) | H3 |
| Cutting Edge Material | HSSPM |
| Thread Standard | UNF |
| Thread Size | #3 - 56 |
