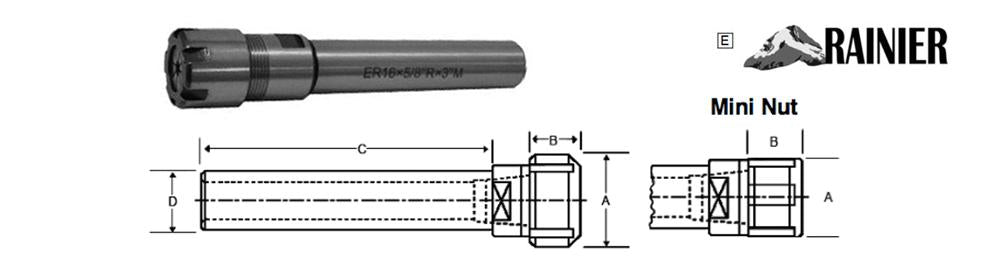

ER 16 Straight Shank Holders
ER-16 Collet Extensions
- Crafted from heat treated alloy steel
- Available with round or flatted shank
- Supplied with collet nut
| Collet Series | Shank Dia D | Shank Length C | Nut Dia A | Nut Length B | Nut Type | Shank Type | Part Number | Thread of Nut | Collet Nut Part Number | Wrench Part Number |
| ER16 | 0.500 | 6.00 | 0.87 | 0.67 | Mini | Round | S-E16R05-60N-R | M19X1 | CN-ER16MN-V | WR-ER16MN |
| ER16 | 0.625 | 3.00 | 0.87 | 0.67 | Mini | Round | S-E16R06-30N-R | M19X1 | CN-ER16MN-V | WR-ER16MN |
| ER16 | 0.625 | 3.00 | 1.10 | 0.67 | Hex | Round | S-E16R06-30H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.625 | 3.70 | 1.10 | 0.67 | Hex | Round | S-E16R06-37H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.625 | 6.00 | 0.87 | 0.67 | Mini | Round | S-E16R06-60N-R | M19X1 | CN-ER16MN-V | WR-ER16MN |
| ER16 | 0.625 | 6.00 | 0.87 | 0.67 | Mini | Flatted | S-E16F06-60N-R | M19X1 | CN-ER16MN-V | WR-ER16MN |
| ER16 | 0.750 | 2.00 | 1.10 | 0.67 | Hex | Round | S-E16R07-20H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.750 | 2.50 | 1.10 | 0.67 | Hex | Round | S-E16R07-25H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.750 | 2.50 | 1.10 | 0.67 | Hex | Flatted | S-E16F07-25H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.750 | 3.00 | 0.87 | 0.67 | Mini | Round | S-E16R07-30N-R | M19X1 | CN-ER16MN-V | WR-ER16MN |
| ER16 | 0.750 | 3.60 | 1.10 | 0.67 | Hex | Round | S-E16R07-36H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.750 | 4.00 | 1.10 | 0.67 | Hex | Round | S-E16R07-40H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.750 | 4.00 | 1.10 | 0.67 | Hex | Flatted | S-E16F07-40H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.750 | 5.20 | 0.87 | 0.67 | Mini | Round | S-E16R07-52N-R | M19X1 | CN-ER16MN-V | WR-ER16MN |
| ER16 | 0.750 | 6.00 | 0.87 | 0.67 | Mini | Flatted | S-E16F07-52N-R | M19X1 | CN-ER16MN-V | WR-ER16MN |
| ER16 | 0.750 | 6.00 | 1.10 | 0.67 | Hex | Round | S-E16R07-60H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 0.750 | 2.50 | 1.10 | 0.67 | Hex | Flatted | S-E16F07-60H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 1.00 | 2.50 | 1.10 | 0.67 | Hex | Round | S-E16R10-25H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 1.00 | 2.50 | 1.10 | 0.67 | Hex | Flatted | S-E16F10-25H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 1.00 | 4.00 | 1.10 | 0.67 | Hex | Round | S-E16R10-40H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 1.00 | 4.00 | 1.10 | 0.67 | Hex | Flatted | S-E16F10-40H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
| ER16 | 1.00 | 6.00 | 1.10 | 0.67 | Hex | Round | S-E16R10-60H-R | M22X1.5 | CN-ER16H-K | WR-ER16H |
