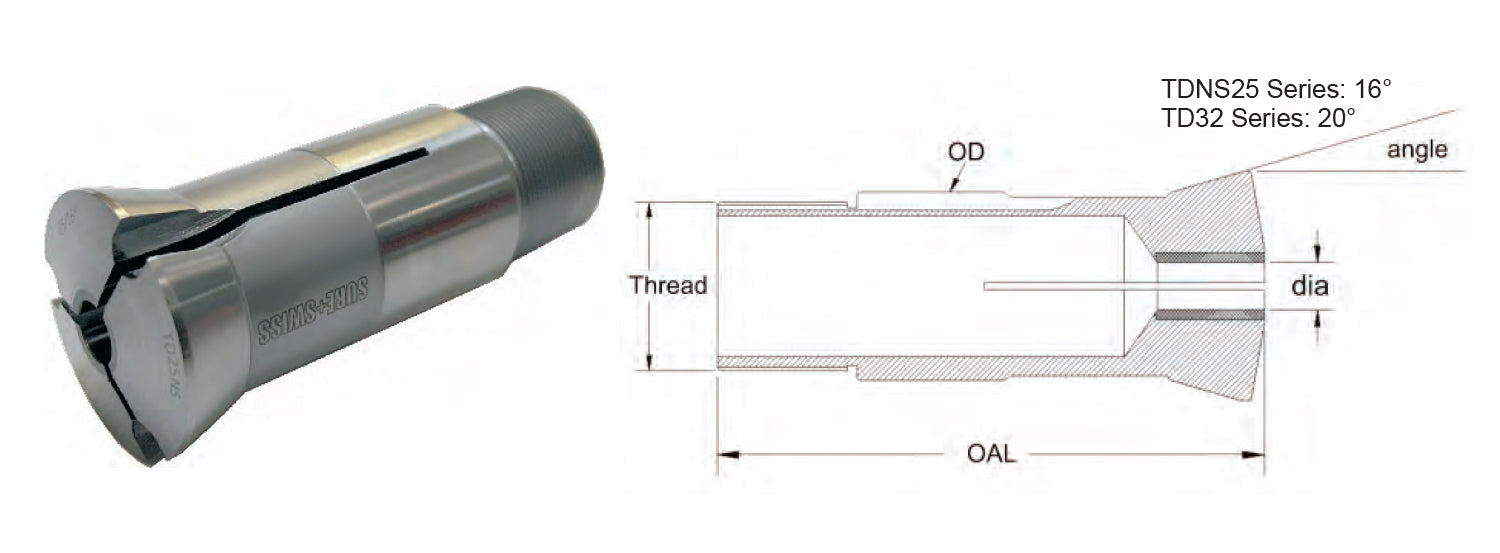

Swiss Guide Bushings TD25NS
- For Swiss type CNC automatic lathes
- Carbide lined
- Standard bore chamfer on bore edge
- Excellent bore finish
- Collet Angle:
TD25NS Series: 16° - Custom guide bushings can be made per your requirements
| Industry Series | Guiding Dia (mm) | OAL (mm) | ID Bore Size | Part Number (Click On Part # To Order) |
| TD25NS | 28mm | 82mm | 1/8" | TD25NS-RM-01250 |
| 3/16" | TD25NS-RM-01875 | |||
| 1/4" | TD25NS-RM-02500 | |||
| 5/16" | TD25NS-RM-03125 | |||
| 3/8" | TD25NS-RM-03750 | |||
| 7/16" | TD25NS-RM-04375 | |||
| 1/2" | TD25NS-RM-05000 | |||
| 9/16" | TD25NS-RM-05625 | |||
| 5/8" | TD25NS-RM-06250 | |||
| 11/16" | TD25NS-RM-06875 | |||
| 3/4" | TD25NS-RM-07500 |
| Industry Series | Guiding Dia (mm) | OAL (mm) | ID Bore Size | Part Number (Click On Part # To Order) |
| TD25NS | 28mm | 82mm | 4mm | TD25NS-RM-4M |
| 5mm | TD25NS-RM-5M | |||
| 6mm | TD25NS-RM-6M | |||
| 7mm | TD25NS-RM-7M | |||
| 8mm | TD25NS-RM-8M | |||
| 9mm | TD25NS-RM-9M | |||
| 10mm | TD25NS-RM-10M | |||
| 11mm | TD25NS-RM-11M | |||
| 12mm | TD25NS-RM-12M | |||
| 13mm | TD25NS-RM-13M | |||
| 14mm | TD25NS-RM-14M | |||
| 15mm | TD25NS-RM-15M | |||
| 16mm | TD25NS-RM-16M | |||
| 17mm | TD25NS-RM-17M | |||
| 18mm | TD25NS-RM-18M | |||
| 19mm | TD25NS-RM-19M | |||
| 20mm | TD25NS-RM-20M |
| Series | Manufacturer | Machine Models |
| TD25NS | CITIZEN | A20/20VI, B20, B20-I, B20-V, L20, L20-I/III, L20VII, L520/720, M20 |
| HANWHA | ML20H(18H), ML20S(18S), SL20H, SL20HP, SL20S, XD20 | |
| KSI | SA20/SM20, SQC20 | |
| NEXTURN | SA18A, SA20/20E |
