Mazak QTN Bushing
This 8 Hole Style Toolholer Bushing is designed to fit your Mazak QTN Machines. Allows for precise alignment of the Holes with the Set Screws from the Tool Block. Set Screw in Head allows for added rigidity. They are Hardened, Precision Ground concentric and Black Oxided for long lasting protection. Prices are pulled from our database in real time. Press Add button to see product price.

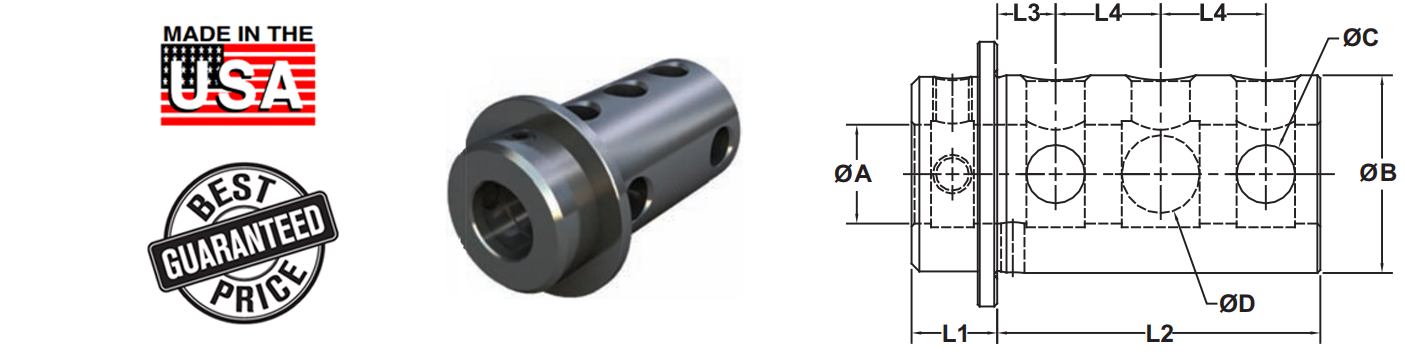

| ØA | ØB | L1 | L2 | L3 | L4 | ØC | ØD | Part Number |
| 0.500 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 1/2" |
| 0.625 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 5/8" |
| 0.750 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 3/4" |
| 0.875 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 7/8" |
| 1.000 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 1" |
| 1.250 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 1-1/4" |
| 1.500 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 1-1/2" |
| 1.750 | 2.000 | 22 | 83 | 15 | 27 | 15 | 20 | 86-15MZ8H 1-3/4" |
