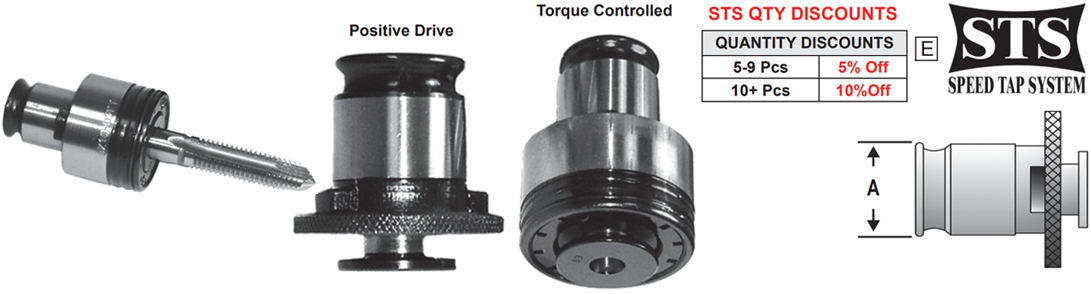

Tab Adapters / Tap Collets
- Interchangeable with industry standard tapping systems.
- Quick change feature saves you time
- Torque Controlled tap adapters are ideal for blind hole tapping to protect your taps and workpieces from tap breakage.
- Positive Drive adapters are best suited for through hole tapping applications.
- Quantity discounts!
| SIZE 0 (A=0.51) | SIZE 1 (A=0.75) | |||
| TAP SIZE | POSITIVE DRIVE | TORQUE CONTROLLED | POSITIVE DRIVE | TORQUE CONTROLLED |
| STS | STS | STS | STS | |
| #0-6, M2,M3 | BZ00-6P | BZ00-6T | BZ10-6P | BZ10-6T |
| #8, M4 | BZ00-8P | BZ00-8T | BZ10-8P | BZ10-8T |
| #10, M4.5,M5 | BZ00-10P | BZ00-10T | BZ10-10P | BZ10-10T |
| #12 | BZ00-12P | BZ00-12T | BZ10-12P | BZ10-12T |
| 1/4", M6 | BZ00-025P | BZ00-025T | BZ10-025P | BZ10-025T |
| 5/16", M7,M8 | BZ00-031P | BZ00-031T | BZ10-031P | BZ10-031T |
| 3/8", M10 | - | - | BZ10-037P | BZ10-037T |
| 7/16" | - | - | BZ10-043P | BZ10-043T |
| 1/2", M12 | - | - | BZ10-050P | BZ10-050T |
| 9/16", M14 | - | - | BZ10-056P | BZ10-056T |
| 1/16" NPT | - | - | BZ10-006NP | BZ10-006NT |
| 1/8" NPT | - | - | BZ10-012NP | BZ10-012NT |
| SETS 1 of each |
BZ00P-SET6 | BZ00T-SET6 | BZ10P-SET12 | BZ10T-SET12 |
| SIZE 2 (A=1.22) | SIZE 3 (A=1.89) | ||
| TAP SIZE | POSITIVE DRIVE | TORQUE CONTROLLED | POSITIVE DRIVE |
| STS | STS | STS | |
| #0-6, M2,M3 | BZ20-6P | - | - |
| #8, M4 | BZ20-8P | - | - |
| #10, M4.5,M5 | BZ20-10P | - | - |
| #12 | BZ20-12P | - | - |
| 1/4", M6 | BZ20-25P | - | - |
| 5/16", M7,M8 | BZ20-031P | BZ20-031T | - |
| 3/8", M10 | BZ20-037P | BZ20-037T | - |
| 7/16" | BZ20-043P | BZ20-043T | - |
| 1/2", M12 | BZ20-050P | BZ20-050T | - |
| 9/16", M14 | BZ20-056P | BZ20-056T | - |
| 5/8", M16 | BZ20-062P | BZ20-062T | - |
| 11/16", M18 | BZ20-068P | BZ20-068T | - |
| 3/4" | BZ20-075P | BZ20-075T | - |
| 13/16", M20 | BZ20-081P | BZ20-081T | BZ30-081P |
| 7/8", M22 | BZ20-087P | BZ20-087T | BZ30-087P |
| 15/16", M24 | - | - | BZ30-093P |
| 1", M25 | - | - | BZ30-100P |
| 1-1/8", M27 | - | - | BZ30-112P |
| 1-1/4", M30 | - | - | BZ30-125P |
| 1-3/8", M33 | - | - | BZ30-137P |
| 1/4" NPT | BZ20-025NP | BZ20-025NT | - |
| 3/8" NPT | BZ20-037NP | BZ20-037NT | - |
| 1/2" NPT | BZ20-050NP | BZ20-050NT | - |
| 3/4" NPT | - | - | BZ30-075NP |
| 1" NPT | - | - | BZ30-100NP |
| SETS 1 of each |
BZ20P-SET18 | BZ20T-SET13 | BZ30P-SET9 |
