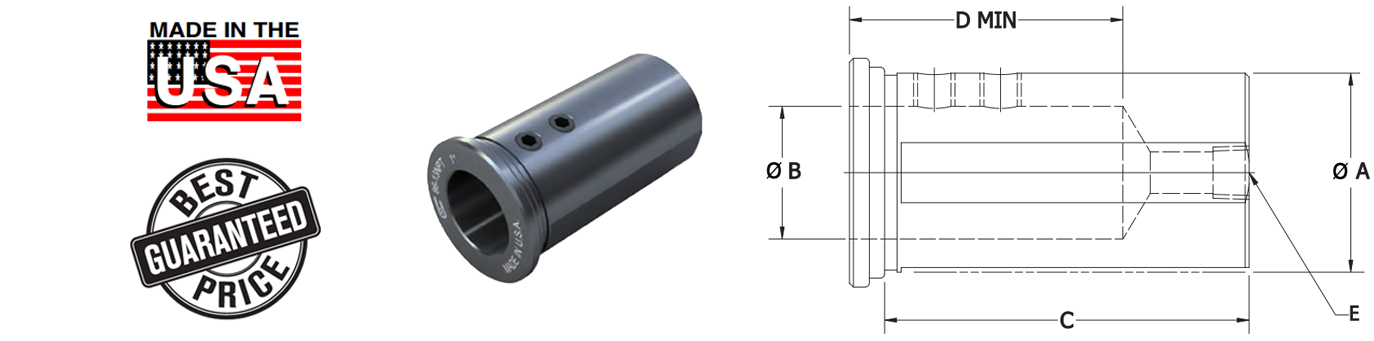

NPT Boring Bar Sleeve
These New NPT Threaded Boring Bar Sleeves have a threaded back end to allow for the inducing Internal Coolant Applications. Prices are pulled from our database in real time. Press Add button to see product price.
| OD | ID | Part Number | |||
| A | C | D (Min) | E | B | |
| 1" | 2-3/4" | 2-1/16" | 1/8-27 NPT | 1/4" | 86-11NPT 1/4" |
| 5/16" | 86-11NPT 5/16" | ||||
| 3/8" | 86-11NPT 3/8" | ||||
| 1/2" | 86-11NPT 1/2" | ||||
| 5/8" | 86-11NPT 5/8" | ||||
| 3/4" | 86-11NPT 3/4" | ||||
| 1-1/4" | 2-3/8" | 2-1/16" | 1/8-27 NPT | 3/8" | 86-12NPT 3/8" |
| 1/2" | 86-12NPT 1/2" | ||||
| 5/8" | 86-12NPT 5/8" | ||||
| 3/4" | 86-12NPT 3/4" | ||||
| 7/8" | 86-12NPT 7/8" | ||||
| 1" | 86-12NPT 1" | ||||
| 1-1/2" | 2-3/4" | 2-1/16" | 1/8-27 NPT | 3/8" | 86-13NPT 3/8" |
| 1/2" | 86-13NPT 1/2" | ||||
| 5/8" | 86-13NPT 5/8" | ||||
| 3/4" | 86-13NPT 3/4" | ||||
| 7/8" | 86-13NPT 7/8" | ||||
| 1" | 86-13NPT 1" | ||||
| 1-1/4" | 86-13NPT 1-1/4" | ||||
| 1-3/4" | 3" | 2-1/16" | 1/8-27 NPT | 1/2" | 86-14NPT 1/2" |
| 5/8" | 86-14NPT 5/8" | ||||
| 3/4" | 86-14NPT 3/4" | ||||
| 7/8" | 86-14NPT 7/8" | ||||
| 1" | 86-14NPT 1" | ||||
| 1-1/4" | 86-14NPT 1-1/4" | ||||
| 2" | 3-1/2" | 2-1/16" | 1/4-18 NPT | 1/2" | 86-15NPT 1/2" |
| 5/8" | 86-15NPT 5/8" | ||||
| 3/4" | 86-15NPT 3/4" | ||||
| 7/8" | 86-15NPT 7/8" | ||||
| 1" | 86-15NPT 1" | ||||
| 1-1/4" | 86-15NPT 1-1/4" | ||||
| 1-1/2" | 86-15NPT 1-1/2" | ||||
