RETENTION KNOB SOCKETS

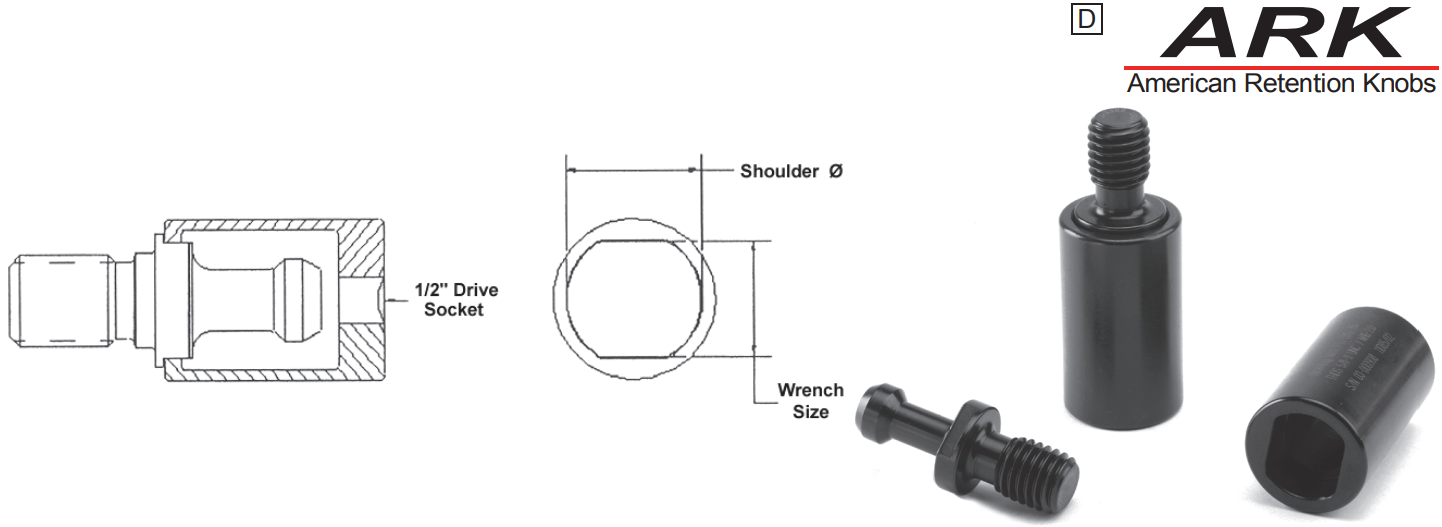

Most CNC facilities are unaware of the critical importance of correctly measuring torque when installing retention knobs. Operators often employ adjustable wrenches and similar crude tools that poorly grip the retention knob and fail to measure torque. For optimal performance and safety, retention knobs are designed to be tightened to specific torque settings. Stud Socket allows the operator to safely and correctly torque retention knobs.
FEATURES:

• Aids in the installation and removal of retention knobs
• Use in conjunction with a torque wrench to uniformly tighten knobs to Manufacturer’s standards
• Extends life of retention knob and tool holder- help to eliminate “rounding off” of knob’s corners
• Torque value clearly laser marked on socket
• Sockets have 1/2” drive- For use with Torque Wrench (Part Number RK-WRENCH)

Prices are pulled from our database in real time. Press Add button to see product price.

USST Retention Knob or Standard	Retention Knob Socket	Max Torque ft/lbs
JMTBA Std. PT30-I JMTBA Std. PT30-II B30-4500H B30-4500S B30-6000S B30-9000S B30-7500H	RK-W30M-A Add RK-W30M-A Add RK-W30M-A Add RK-W30M-A Add RK-W30M-A Add RK-W30M-A Add RK-W30M-A Add	40lbs 40lbs 40lbs 40lbs 40lbs 40lbs 40lbs
DIN Std. 30	RK-W30D Add	40lbs
JMTBA Std. PT35-I JMTBA Std. PT35-II	RK-W40M Add RK-W40M Add	40lbs 40lbs
JMTBA Std. PT40-I JMTBA Std. PT40-II B40-4502S B40-4500H B40-4500S	RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs 85lbs 85lbs
B40-6000H B40-6000S B40-9000H B40-9000S B40-4503H	RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs 85lbs 85lbs
B40-4503S B40-4501H B40-4501S ISO Std A 40 B40-7500H	RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs 85lbs 85lbs
B40-7500S DIN Std. 40 B40-7501H	RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs
JMTBA Std. PT45-I JMTBA Std. PT45-II	RK-W45M Add RK-W45M Add	100lbs 100lbs
B45-4500S B45-6000S B45-9000S	RK-W45M Add RK-W45M Add RK-W45M Add	100lbs 100lbs 100lbs
ISO Std A 45 DIN Std. 45	RK-W45M Add RK-W45M Add	100lbs 100lbs
JMTBA Std. PT50-I JMTBA Std. PT50-II B50-4500H	RK-W50M-A Add RK-W50M-A Add RK-W50M-A Add	110lbs 110lbs 110lbs
B50-4500S B50-6000H B50-6000S B50-9000H B50-9000S	RK-W50M-A Add RK-W50M-A Add RK-W50M-A Add RK-W50M-A Add RK-W50M-A Add	110lbs 110lbs 110lbs 110lbs 110lbs
B50-4509H-NEW B50-4509S	RK-W50 Add RK-W50 Add	110lbs 110lbs
ISO Std A 50 DIN Std. 50 B50-7500S-NEW B50-7500H-NEW	RK-W50M-A Add RK-W50M-A Add RK-W50M-A Add RK-W50M-A Add	110lbs 110lbs 110lbs 110lbs
1U.S. Std. ANSI 30 C30-4500H C30-4500S	RK-W30 Add RK-W30 Add RK-W30 Add	40lbs 40lbs 40lbs
C40-4501H C40-4501S C40-4501SG C40-4502H C40-4502S C40-4504S	RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs - 85lbs 85lbs 85lbs
C40-6006S C40-6006H C40-6000H C40-6000S C40-MITSUI	RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs 85lbs 85lbs
C40-9006S C40-9006H C40-9001S	RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs
C40-9000H C40-9000S C40-4503H C40-4503S 1U.S. Std. ANSI 40	RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs 85lbs 85lbs
C40-4500H C40-4500S C40-4500SG C40-4505H C40-4505S	RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs - 85lbs 85lbs
C40-7500H C40-7500S C40-7551H	RK-W40-A Add RK-W40-A Add RK-W40-A Add	85lbs 85lbs 85lbs
C45-4500S C45-6000S C45-9000S	RK-W45M Add RK-W45M Add RK-W45M Add	100lbs 100lbs 100lbs
C45-4501H C45-4501S 1U.S. Std. ANSI 45	RK-W45 Add RK-W45 Add RK-W45 Add	100lbs 100lbs 100lbs
C50-4501H C50-4501R C50-4501S C50-6000H C50-6000S C50-9000H	RK-W50-A Add RK-W50-A Add RK-W50-A Add RK-W50-A Add RK-W50-A Add RK-W50-A Add	110lbs 110lbs 110lbs 110lbs 110lbs 110lbs
C50-9000S 1U.S. Std. ANSI 50 C50-4500H C50-4500R C50-4500S	RK-W50-A Add RK-W50-A Add RK-W50-A Add RK-W50-A Add RK-W50-A Add	110lbs 110lbs 110lbs 110lbs 110lbs
C50-4506H C50-4506R C50-7550H	RK-W50-A Add RK-W50-A Add RK-W50-A Add	110lbs 110lbs 110lbs
