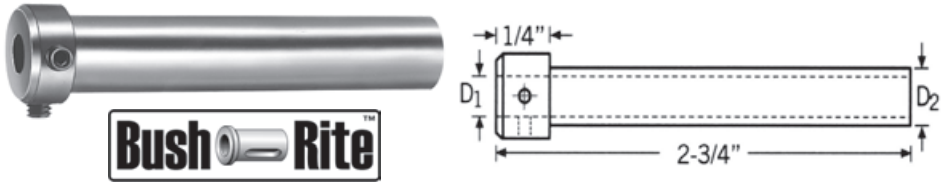

Type H Boring Bar Sleeves
TYPE H BORING BAR SLEEVES
SHORT LENGTH-Ideal For Solid Carbide Boring, Grooving And Threading Tools Prices are pulled from our database in real time. Press Add button to see product price.
SHORT LENGTH-Ideal For Solid Carbide Boring, Grooving And Threading Tools Prices are pulled from our database in real time. Press Add button to see product price.
| OD D2 | OAL | Head Thick. | ID D1 | Industry Reference # | Flatted Shank Part Number |
Round Shank Part Number |
Screw Size |
| 1/2” | 2-3/4” | 1/4” | 1/8" | MI-TH84 | TBH-05-0125-FB | TBH-05-0125-B | 6-40 UNF x 1/4 |
| 3/16" | MI-TH85 | TBH-05-0187-FB | TBH-05-0187-B | ||||
| 1/4" | MI-TH86 | TBH-05-0250-FB | TBH-05-0250-B | 6-40 UNF x 3/16 | |||
| 5/16" | MI-TH87 | TBH-05-0312-FB | TBH-05-0312-B | ||||
| 3/8" | MI-TH88 | TBH-05-0375-FB | TBH-05-0375-B | 6-40 x 1/8 | |||
| 5/8” | 2-3/4” | 1/4” | 1/8" | MI-TH104 | TBH-06-0125-FB | TBH-06-0125-B | 6-40 UNF x 5/16 |
| 3/16" | MI-TH105 | TBH-06-0187-FB | TBH-06-0187-B | ||||
| 1/4" | MI-TH106 | TBH-06-0250-FB | TBH-06-0250-B | 6-40 UNF x 1/4 | |||
| 5/16" | MI-TH107 | TBH-06-0312-FB | TBH-06-0312-B | ||||
| 3/8" | MI-TH108 | TBH-06-0375-FB | TBH-06-0375-B | 6-40 x 3/16 | |||
| 3/4” | 2-3/4” | 1/4” | 1/8" | MI-TH204 | TBH-07-0125-FB | TBH-07-0125-B | 6-40 UNF x 3/8 |
| 3/16" | MI-TH205 | TBH-07-0187-FB | TBH-07-0187-B | ||||
| 1/4" | MI-TH206 | TBH-07-0250-FB | TBH-07-0250-B | 6-40 UNF x 5/16 | |||
| 5/16" | MI-TH207 | TBH-07-0312-FB | TBH-07-0312-B | ||||
| 3/8" | MI-TH208 | TBH-07-0375-FB | TBH-07-0375-B | 6-40 x 1/4 |
