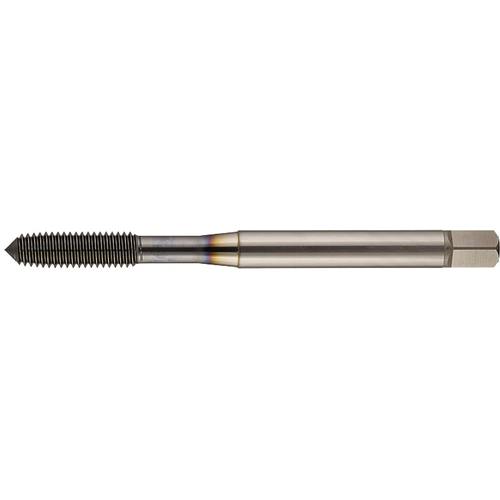

5-40 TICN ZELX OL-RZ H5 PLUG TAP
Item #: YM20386603
Brand: YMW Taps
Model #: 386603
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Application | Through Hole |
| Thread Diameter Size (TDZ) | #5 |
| Applicable Material | Steel |
| Overall Length (OAL) | 2.205″ |
| Coating | TiCN |
| Usable Length (LU) | 0.709″ |
| Threads per Inch (TPI) | 40 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Chamfer | 4P |
| Thread Tolerance Class (TCTR) | H5 |
| Cutting Edge Material | HSSPM |
| Thread Standard | UNC |
| Thread Size | #5 - 40 |
