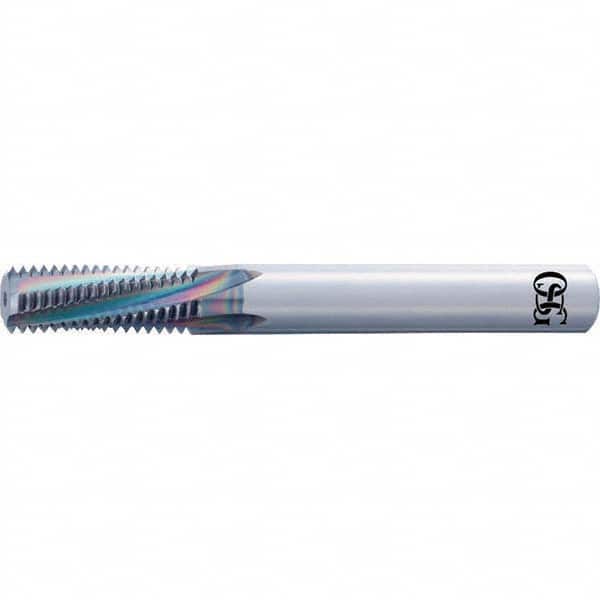

OSG - Helical Flute Thread Mills Threads Per Inch: 12 Material: Carbide
Item #: 94908662
Brand: OSG
Model #: 1662502817
Product Specifications
Helical Flute Thread Mills; Threads Per Inch: 12 ; Material: Carbide ; Thread Size (Inch): 1-12 ; Thread Type: Internal/External ; Shank Diameter (Decimal Inch): 0.7500 ; Shank Diameter (Inch): 3/4
| Threads Per Inch | 12 |
| Material | Carbide |
| Thread Size (Inch) | 1-12 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Number of Flutes | 6 |
| Cutting Diameter (Decimal Inch) | 0.7360 |
| Cutting Diameter (mm) | 0.74 |
| Length of Cut (Decimal Inch) | 2.1670 |
| Length of Cut (Inch) | 2.1670 |
| Finish/Coating | EgiAs |
| Through Coolant | NonThrough Coolant |
| Minimum Nominal Diameter (Decimal Inch) | 0.0000 |
| Overall Length (Inch) | 6 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
