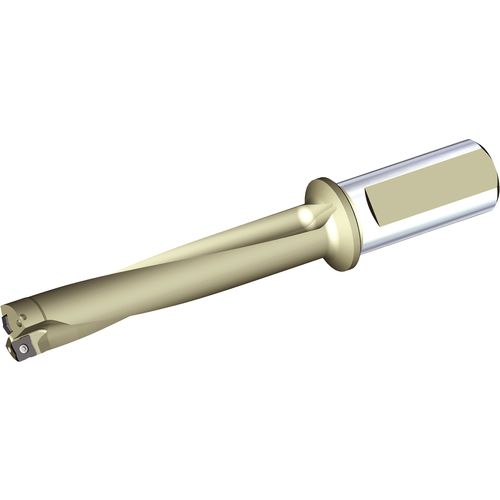

TCF1625R5SSF150F 4 DIA 1.625IN 5XD
Item #: WK535578689
Brand: Widia
Model #: 5578689
| Product Specifications | |
|---|---|
| Usable Length (LU) | 8.183″ |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Diameter Minimum (DCN) | 1-5/8″ |
| Shank Type | Round |
| Point Length (PL) | 0.058″ |
| Protruding Length (LPR) | 9.882″ |
| Measurement Type | Inch |
| Shank Length (LS) | 2.756″ |
| Length Group | 5D |
| Functional Length (LF) | 9.824″ |
| Helix Angle | 20Degrees |
| Overall Length (OAL) | 12.638″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter | 1.953″ |
| Cutting Direction (HAND) | Right Hand |
