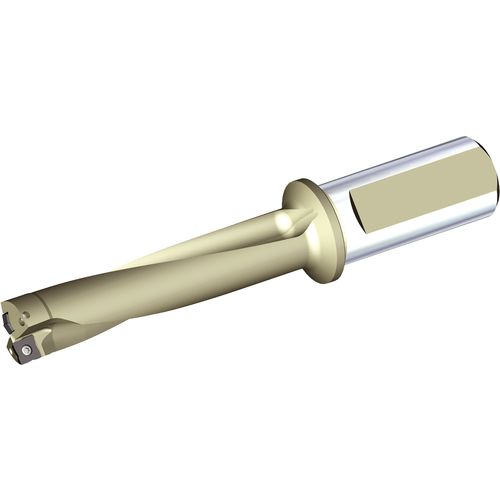

TCF0906R4SSF100C 4 DIA .906IN 4XD
Item #: WK535578418
Brand: Widia
Model #: 5578418
| Product Specifications | |
|---|---|
| Usable Length (LU) | 3-21/32″ |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Diameter Minimum (DCN) | 29/32″ |
| Shank Type | Round |
| Cutting Diameter Maximum (DCX) | 0.926″ |
| Protruding Length (LPR) | 4.81″ |
| Point Length (PL) | 0.032″ |
| Shank Length (LS) | 2.205″ |
| Measurement Type | Inch |
| Functional Length (LF) | 4.778″ |
| Length Group | 4D |
| Overall Length (OAL) | 7.014″ |
| Helix Angle | 20Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Body Diameter | 1.256″ |
