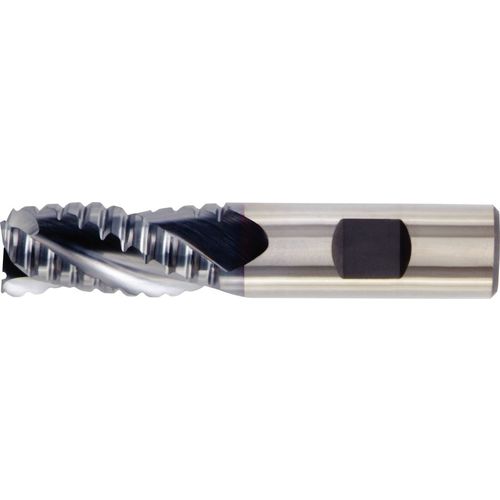

1X1X4X6.1/2 PM RUF 3FL CARB EM
Item #: WK402840103
Brand: Widia
Model #: 2840103
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Usable Length (LU) | 4″ |
| Depth of Cut Maximum (APMX) | 4″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 6-1/2″ |
| Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | HSSPM |
| Tool Type | Center Cut|Single-End |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 30 Degrees|CW |
| Decimal Equivalent | 1″ |
| Shank Type | Weldon |
