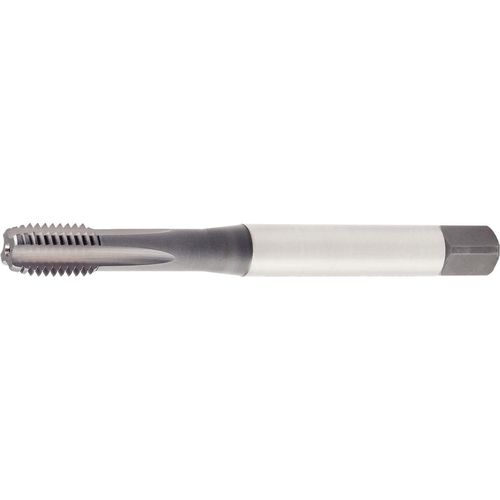

GT415018 3/8-24 3BX SBOTT DIN ANS
Item #: WK344157947
Brand: Widia
Model #: 4157947
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Chamfer | 2P-3P |
| Threads per Inch (TPI) | 24 |
| Coating | TiCN |
| Thread Standard | NF |
| Flute Type | Straight |
| Overall Length (OAL) | 3.94″ |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.63″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 0.286″ |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 3BX |
| Thread Size | 3/8″ - 24 |
| Standard | ANSI|DIN |
