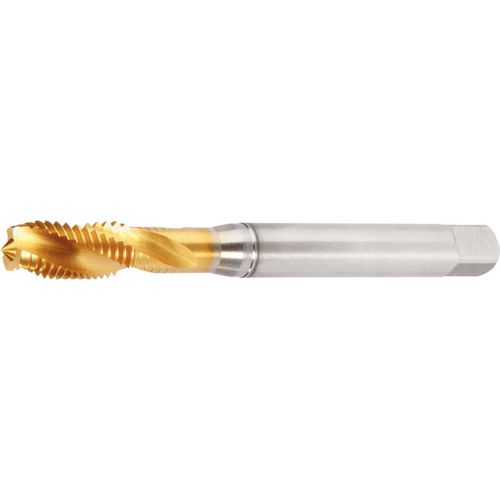

GT025001 M3X0.5 6H RHSF SBOT 371
Item #: WK344152638
Brand: Widia
Model #: 4152638
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Standard | DIN 371 |
| Thread Pitch (TP) | 0.5 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 56 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 11 mm |
| Style | Semi-Bottoming |
| Usable Length (LU) | 18 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Square Size | 2.7 mm |
| Flute Helix Angle (FHA) | 25 Degrees |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel |
| Grade | WP31MG |
| Cutting Edge Material | HSS-E PM |
| Series/List # | GT |
| Thread Tolerance Class (TCTR) | 6H |
