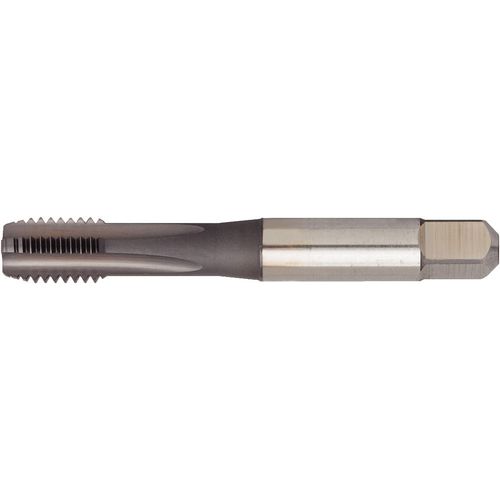

GT405027 1/2-20 3BX STFL SBOTT
Item #: WK344035570
Brand: Widia
Model #: 4035570
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 20 |
| Chamfer | 2P-3P |
| Thread Standard | NF | UNF |
| Flute Type | Straight |
| Overall Length (OAL) | 3.38″ |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.77″ |
| Shank Type | Round w/ Drive Square |
| Usable Length (LU) | 1.74″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Square Size | 0.279″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Inch |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | WU32MG |
| Cutting Edge Material | HSS-E-PM |
| Series/List # | GT40 |
| Thread Tolerance Class (TCTR) | 3BX |
| Thread Size | 1/2″ - 20 |
