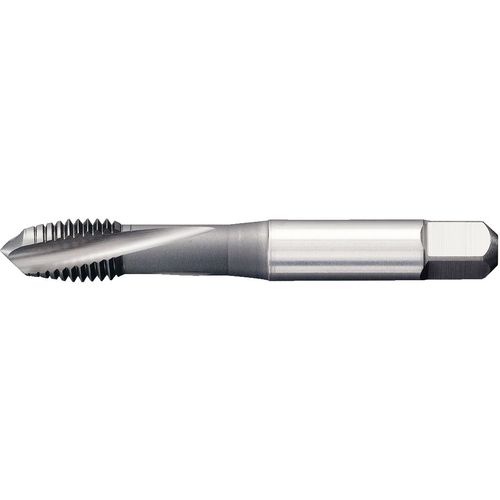

GT205060 1/2-20 3BX LH SF PLUG
Item #: WK343955006
Brand: Widia
Model #: 3955006
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 20 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | NF | UNF |
| Chamfer | 3P-5P |
| Overall Length (OAL) | 3.38″ |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 0.77″ |
| Flute Type | Spiral |
| Usable Length (LU) | 1.74″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees |
| Square Size | 0.275″ |
| Applicable Material | Steel | Super-Alloys / Titanium |
| Measurement Type | Inch |
| Cutting Edge Material | HSS-E PM |
| Grade | WU32MG |
| Thread Tolerance Class (TCTR) | 3BX |
| Series/List # | GT |
