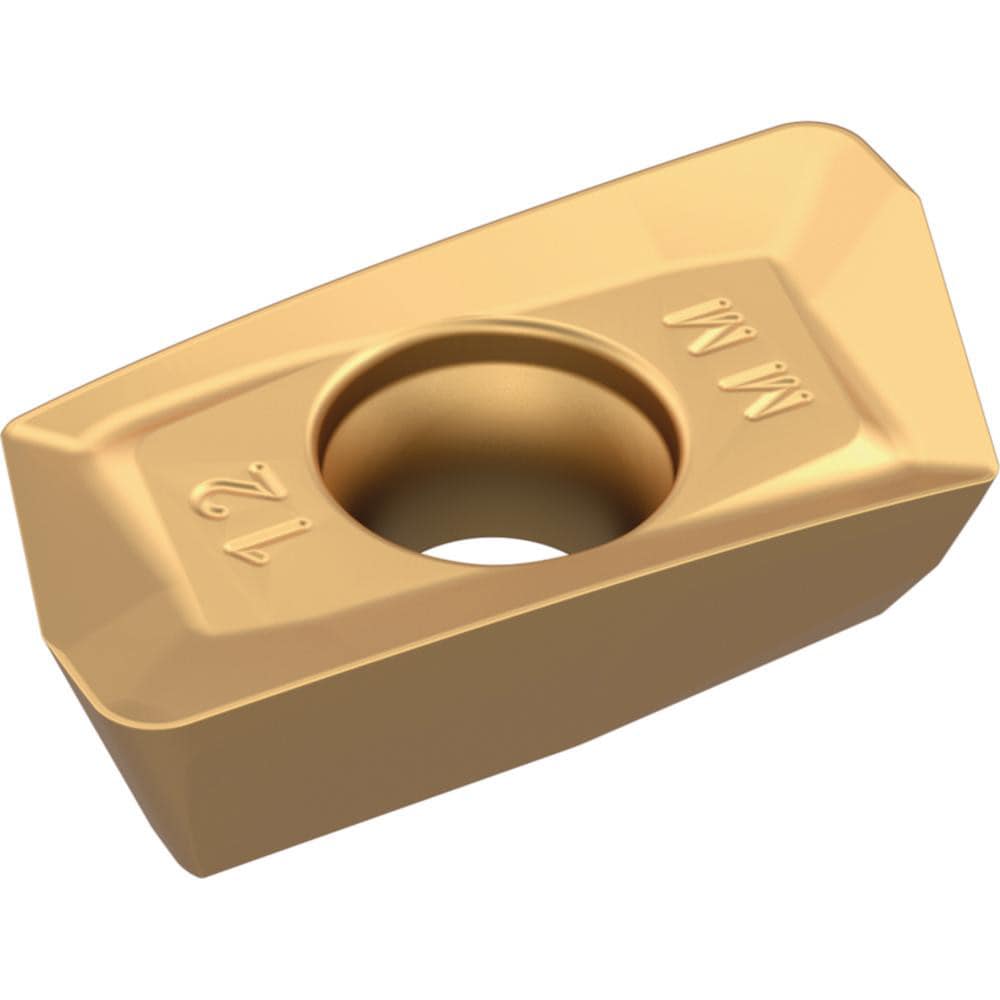

Brand: Widia / Part #: 5988153

Brand: Widia / Part #: 5988153


Item #: 94013364
Brand: Widia
Model #: 5988153

Product Specifications

Insert Style XDPT
Insert Size Code 1704
Insert Size 17
Insert Material Carbide
Manufacturer Grade WK15CM
Inscribed Circle (Decimal Inch) 0.3780
Corner Radius (Decimal Inch) 0.0630
Corner Radius (Inch) 1/16
Insert Hand Right Hand
Relief Angle 15.000
Series VSM17
Coating Process CVD
Hole Diameter (Decimal Inch) 0.1730
Maximum Depth of Cut (Decimal Inch) 0.6580
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code XDPT1704SRMM
Iso Code XDPT170416PESRMM
Manufacturers Catalog Number XDPT1704SRMM
Cutter Series Compatibility VSM17 XDPT
Chip Breaker MM
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Parallelogram
Insert Holding Method Screw
Coating Classification CVD
Single or Double Sided Insert Single
Coating/Finish TiCN; TiN; Al2O3
Included Angle Degree 75
Width (Decimal Inch - 4 Decimals) 0.3780
Thickness (Decimal Inch - 4 Decimals) 0.1930
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.7550
$16.60
