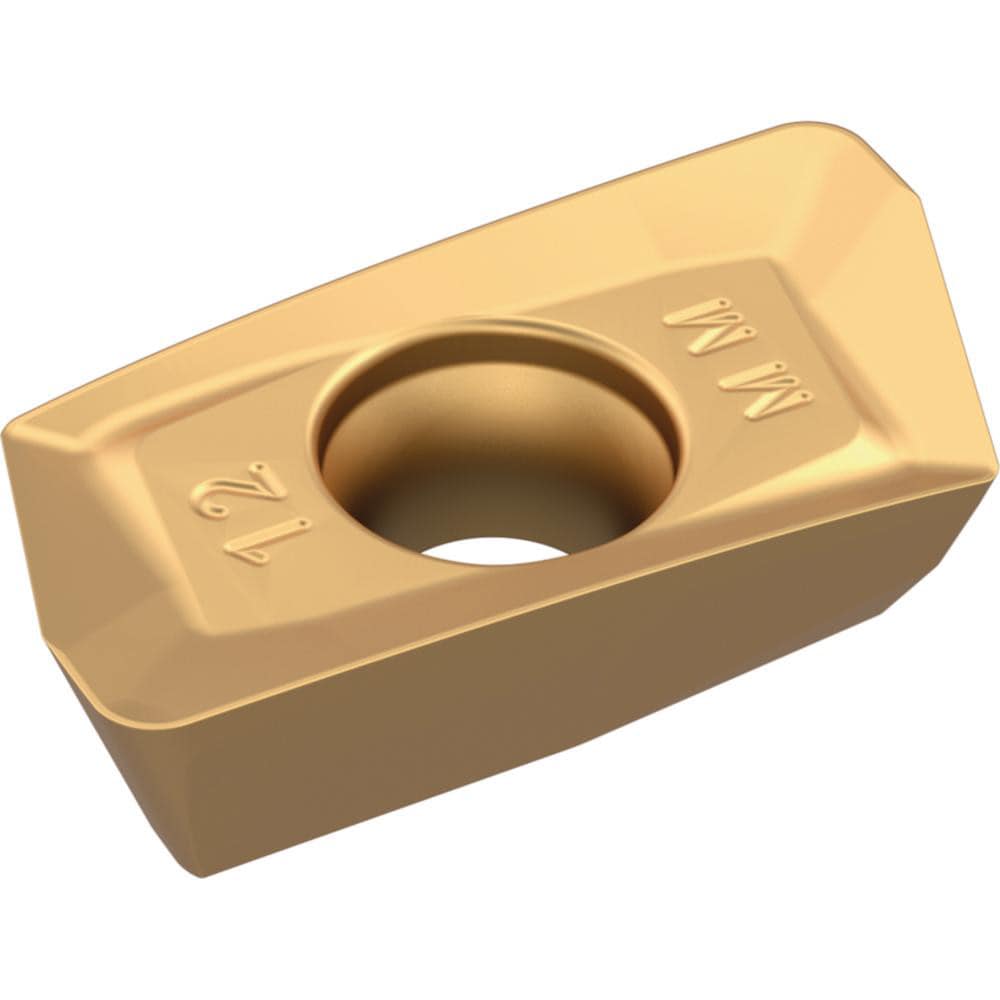

Brand: Widia / Part #: 5988155
Item #: 94012705
Brand: Widia
Model #: 5988155
Product Specifications
| Insert Style | XDPT |
| Insert Size Code | 1704 |
| Insert Size | 17 |
| Insert Material | Carbide |
| Manufacturer Grade | WP25PM |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (Inch) | 1/16 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | VSM17 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.6580 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | XDPT1704SRMM |
| Iso Code | XDPT170416PESRMM |
| Manufacturers Catalog Number | XDPT1704SRMM |
| Cutter Series Compatibility | VSM17 XDPT |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlTiN |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1930 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7550 |
