Brand: Widia / Part #: 4171893

Brand: Widia / Part #: 4171893


Item #: 93290096
Brand: Widia
Model #: 4171893

Product Specifications

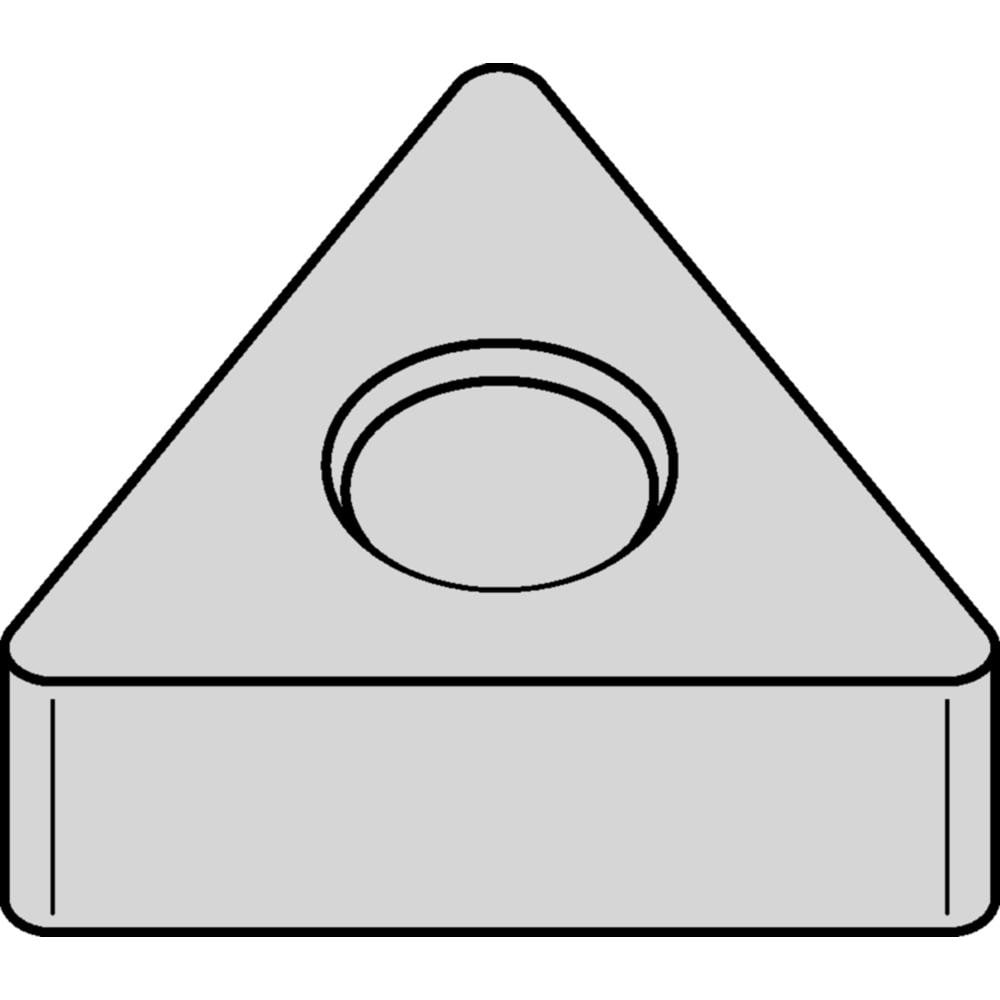

Insert Style TNMA
Insert Shape Code T
Insert Size Code 432
Insert Shape Triangle
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade WK20CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.4330
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMA
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.8660
Number Of Cutting Edges 6
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code TNMA432
Iso Code TNMA220408
Manufacturers Catalog Number TNMA432
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker None
Style TNMA
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
