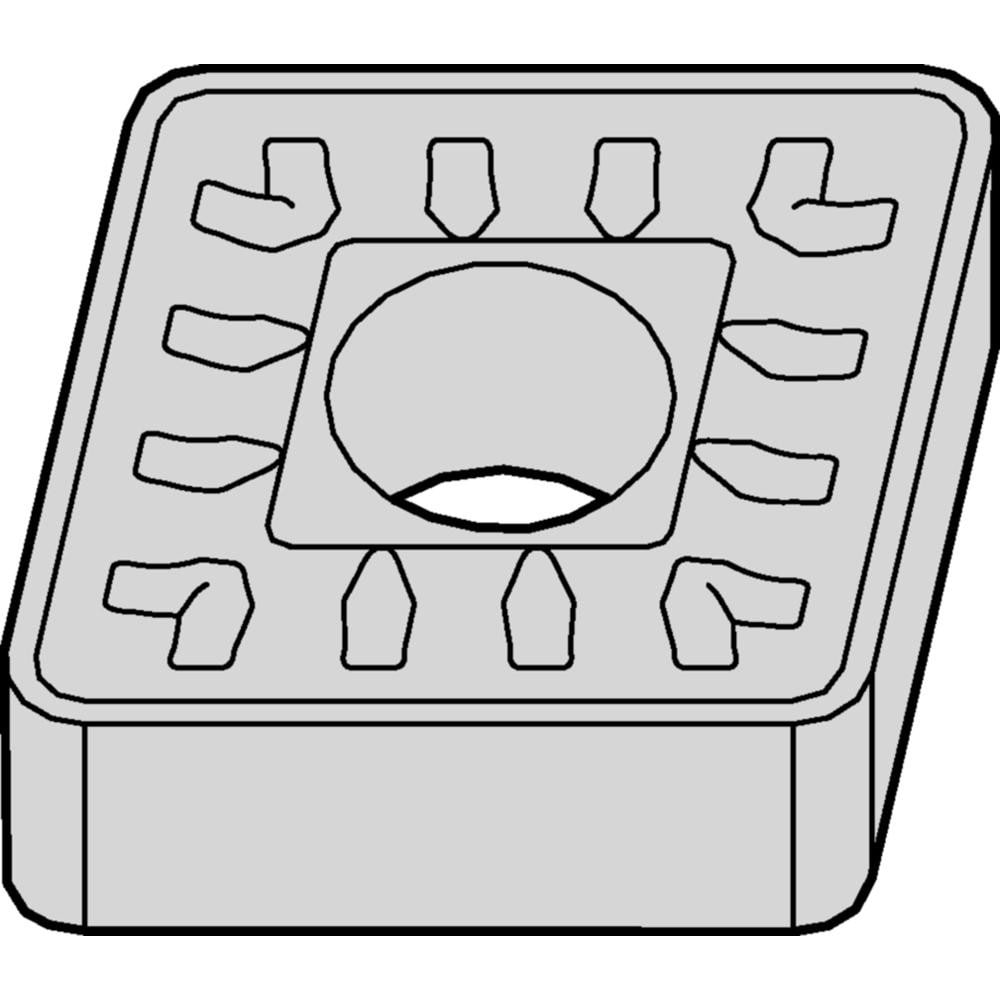

Brand: Widia / Part #: 5696647

Brand: Widia / Part #: 5696647


Item #: 94116944
Brand: Widia
Model #: 5696647

Product Specifications

Insert Style CNMM
Insert Shape Code C
Insert Size Code 866
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WP35CT
Corner Radius (Decimal Inch) 0.0945
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3591
Maximum Depth of Cut (Decimal Inch) 0.5077
Inscribed Circle (Decimal Inch) 1.0000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.3750
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMM
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 1.0154
Number Of Cutting Edges 2
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Ansi Code CNMM866SR
Iso Code CNMM250924SR
Manufacturers Catalog Number CNMM866SR
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker SR
Cutting Edge Style Chamfered and Rounded
Style CNMM
Width (Decimal Inch - 4 Decimals) 1.0000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$52.55
