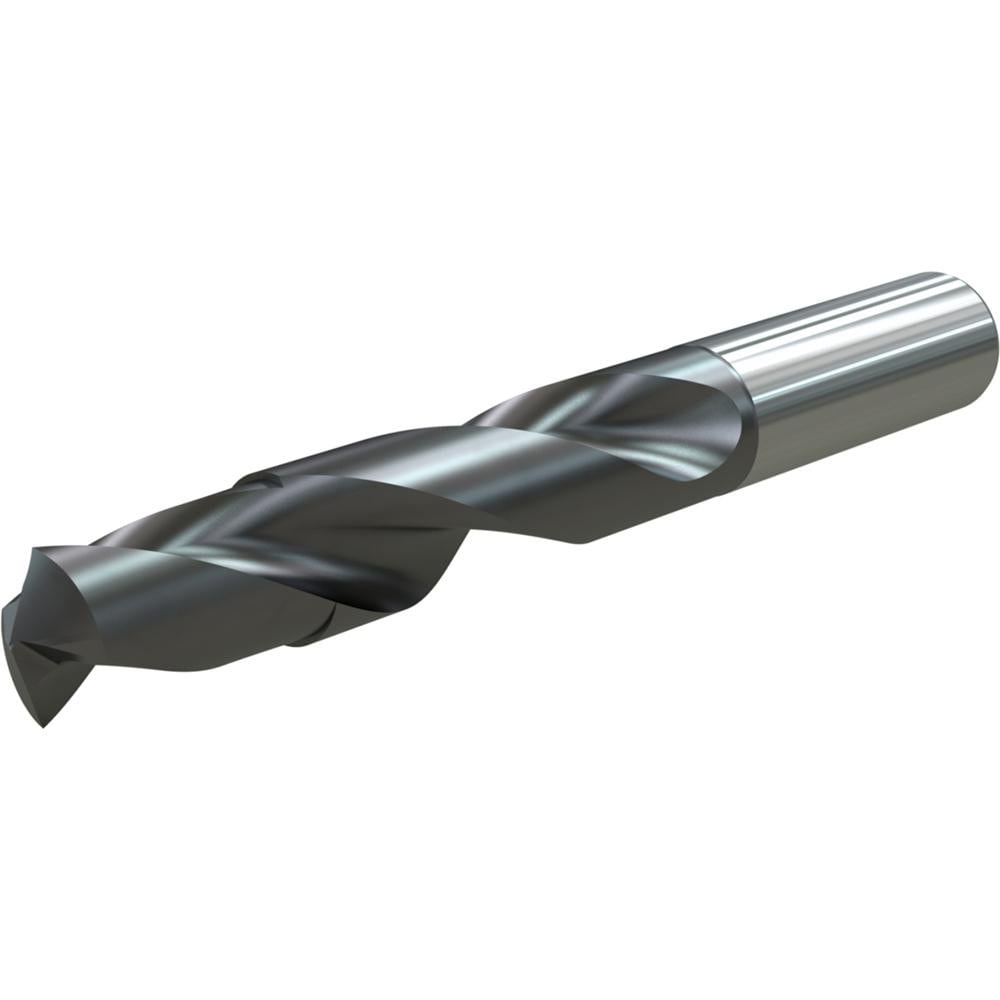

Brand: Widia / Part #: 4148022

Brand: Widia / Part #: 4148022


Item #: 83683573
Brand: Widia
Model #: 4148022

Product Specifications

Drill Bit Size (mm) 2.30
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Standard
Coolant Through No
Shank Type Cylindrical
Number of Flutes 2
Overall Length (mm) 58.0000
Flute Length (mm) 18.00
Series VDS202
Tool Application Drilling
Flute Length x Diamter Ratio 6
Flute By Diameter Ratio 6xD
Shank Diameter (mm) 4.0000
Maximum Drilling Depth (mm) 14.00
Shank Length (mm) 28.000
Number of Flats 2
Drill Point Length (mm) 0.36
Drill Bit Diameter Tolerance -0.014000 to 0.000000 mm
Tool Performance General Purpose
Double Margin No
Drill Bit Grade WU25PD
Material Grade WU25PD
$53.42
