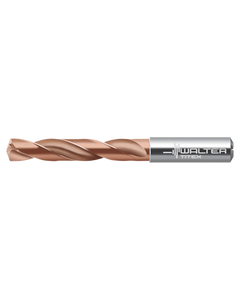

3/16″ Dia. × 0.236″ Shank × 1-47/64″ Flute Length × 3-15/64″ OAL, 5xD, 140°, 2xD Flute, Coolant Thru, DIN 6537 L, Round Solid Carbide Drill
Item #: TT105924792
Brand: Walter-Titex
Model #: 5924792
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ |
| Shank Standard | DIN 6537 L |
| Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Tool Type | Solid Carbide Drill |
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1-3/8″ |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 1-47/64″ |
| Flute Helix Angle (FHA) | CW | 30 Degrees |
| Overall Length (OAL) | 3-15/64″ |
| Shank Type | Round |
| Flute Count (NOF) | 2 |
