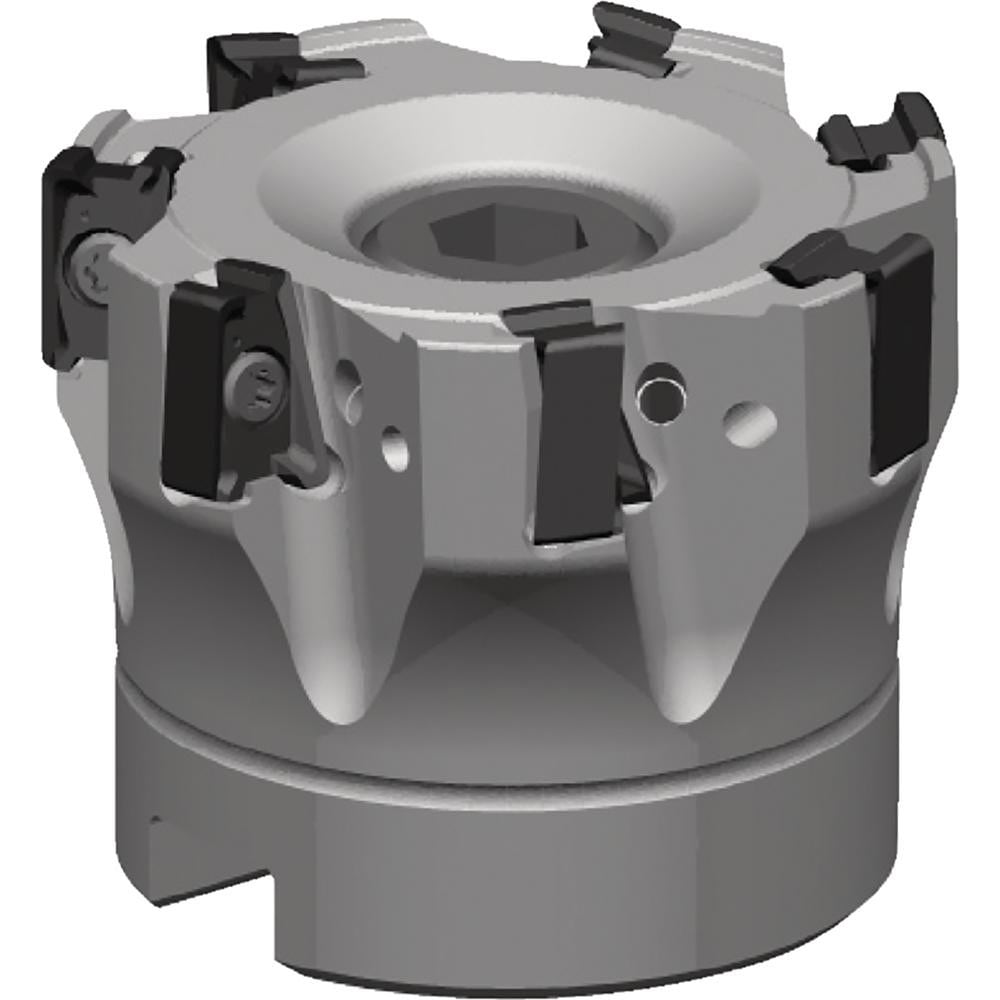

Brand: Widia / Part #: 6596158

Brand: Widia / Part #: 6596158


Item #: 09787219
Brand: Widia
Model #: 6596158

Product Specifications

Minimum Cutting Diameter (mm) 80.00
Maximum Cutting Diameter (mm) 80.00
Maximum Depth of Cut (mm) 10.00
Arbor Hole Diameter (mm) 27.00
Compatible Insert Size Code XNGU1004..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Axial); Negative (Radial)
Rake Angle -12.700
Series VSM490
Maximum Body Diameter (mm) 77.89
Overall Height (Mm - 5 Decimals) 50.00000
Keyway Width (mm) 12.48
Hub Diameter (mm) 60.000
Maximum RPM 17100.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM490D080Z06S27XN10
Coolant Hole Diameter (Decimal Inch) 0.0980
Complete Insert Compatibility XNGU100408SRMM
Toolholder Material Steel
Manufacturers Catalog Number VSM490D080Z06S27XN10
Coolant Through Yes
Number Of Cutter Inserts 6
Number Of Flutes 6
$1,215.56
