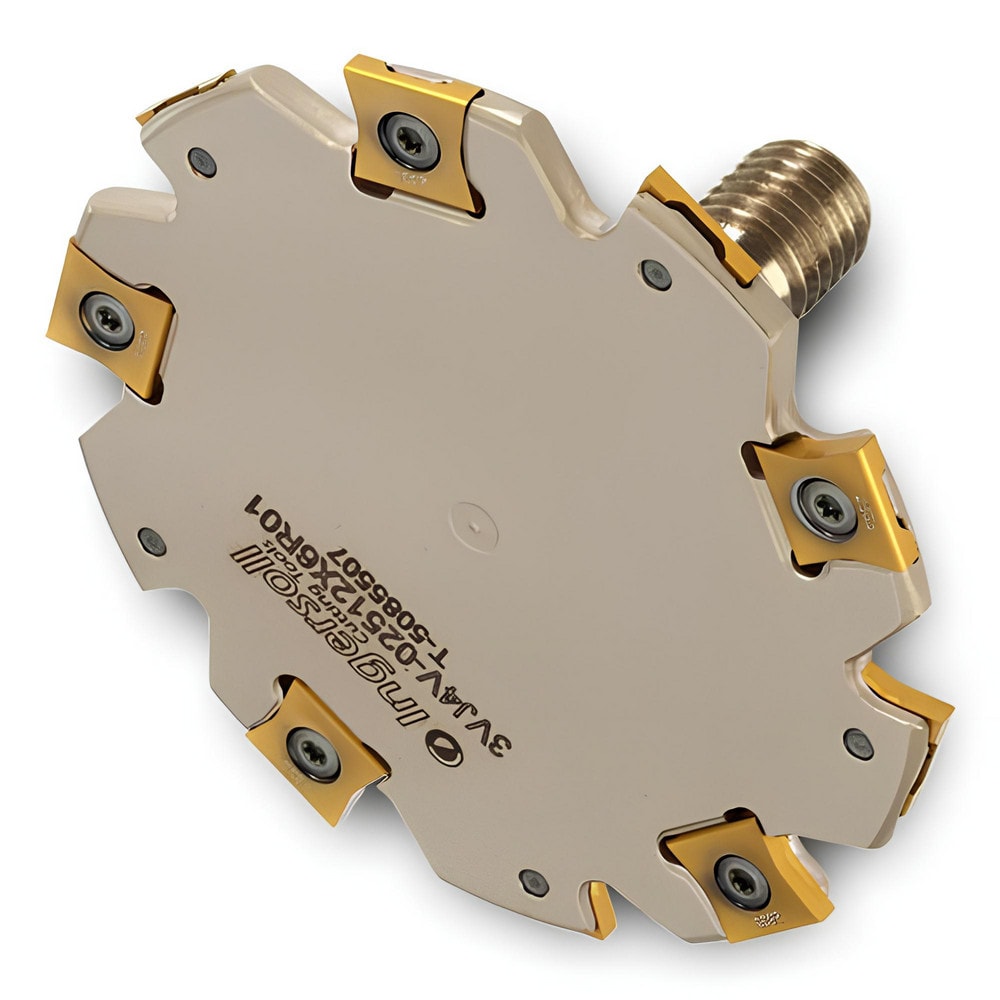

Brand: Ingersoll Cutting Tools / Part #: 2917496
Item #: 31059678
Brand: Ingersoll Cutting Tools
Model #: 2917496
Product Specifications
| Connection Type | Modular Connection |
| Cutting Width (Inch) | 3/16 |
| Maximum Depth of Cut (Decimal Inch) | 1.1000 |
| Cutter Diameter (Inch) | 3-1/2 |
| Shank Diameter (Decimal Inch) | 1.1300 |
| Shank Length (Decimal Inch) | 0.8125 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | IHX |
| Compatible Insert Size Code | 312 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered Tooth |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3VJ4V |
| Toolholder Style | 3VJ4V |
| Modular Connection Size | M16 |
| Hub Diameter (mm) | 28.700 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.1870 |
| Maximum Body Diameter (Decimal Inch) | 3.5000 |
| Cutter Body Width (Decimal Inch) | 0.1870 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3VJ4V-03518X8R01 |
| Overall Length (Decimal Inch) | 1.0000 |
| Number Of Teeth | 10 |
| Coolant Through | No |
| Complete Insert Compatibility | INX312.. |
| Coating/Finish | Coated |
