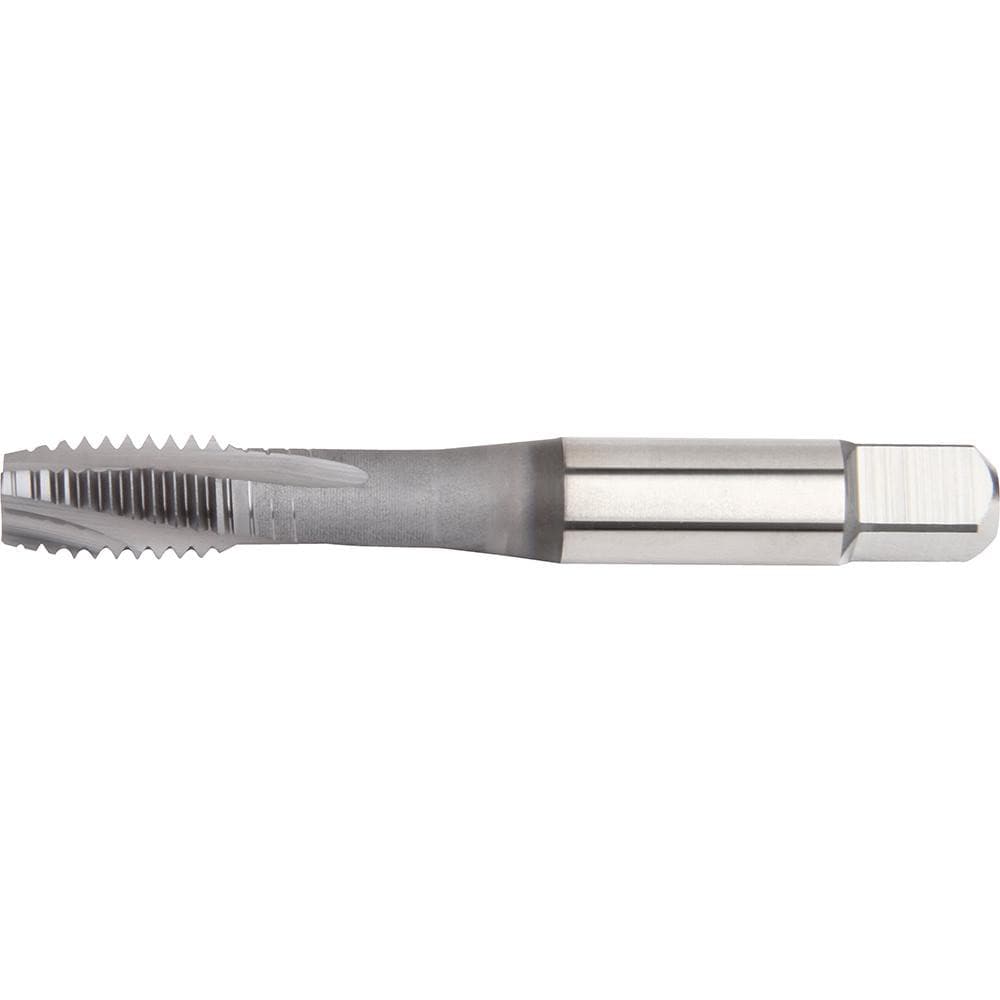

Brand: Widia / Part #: 5708194

Brand: Widia / Part #: 5708194


Item #: 97406409
Brand: Widia
Model #: 5708194

Product Specifications

Thread Size (Inch) 1/2-20
Chamfer Plug
Thread Limit H3
Class Of Fit 3B
Number Of Flutes 3
Material Powdered Metal
Threads per Inch 20
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish Oxide; Nitride
Coolant Through No
Thread Length (Decimal Inch) 0.7700
Overall Length (Decimal Inch) 3.3800
Thread Depth (Decimal Inch) 1.7400
Thread Pitch (Decimal Inch) 0.0500
Thread Standard UNF
Material Grade WS39MG
Shank Diameter (Decimal Inch) 0.3670
Square Size (Decimal Inch) 0.2720
Material Application High-Temperature Alloy
Series GT92
$52.34
