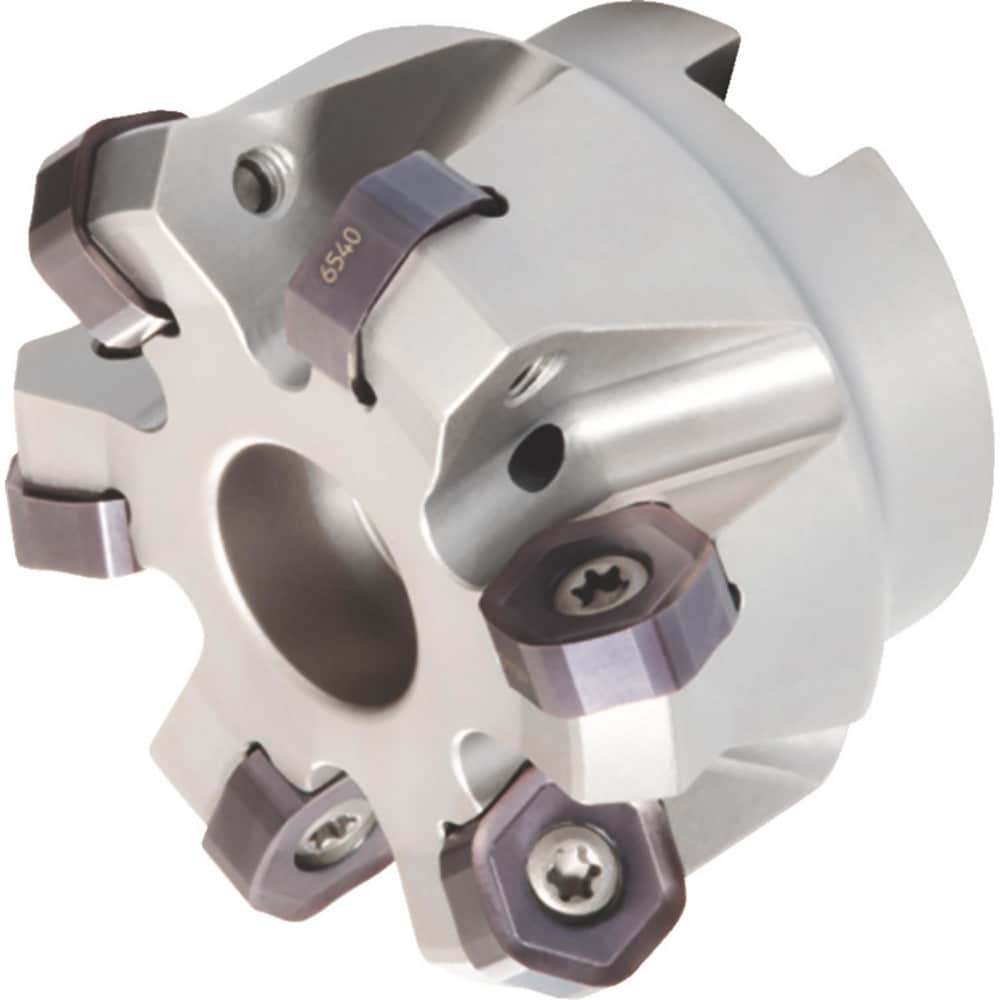

Brand: Widia / Part #: 3958000

Brand: Widia / Part #: 3958000


Item #: 97481451
Brand: Widia
Model #: 3958000

Product Specifications

Minimum Cutting Diameter (mm) 63.00
Maximum Cutting Diameter (mm) 71.71
Maximum Depth of Cut (mm) 3.50
Arbor Hole Diameter (mm) 22.00
Lead Angle 45.000
Compatible Insert Size Code HN..0704
Cutter Style M1200 Mini
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series M1200 Mini
Hub Diameter (mm) 50.000
Overall Height (Mm - 5 Decimals) 40.00000
Maximum Body Diameter (mm) 68.94
Maximum RPM 10100.000
Tool Application Chamfering; Facing; Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Complete Insert Compatibility HNGJ0704ANENLD
Toolholder Material Steel
Number Of Cutter Inserts 4
Coolant Through Yes
Number Of Flutes 4
