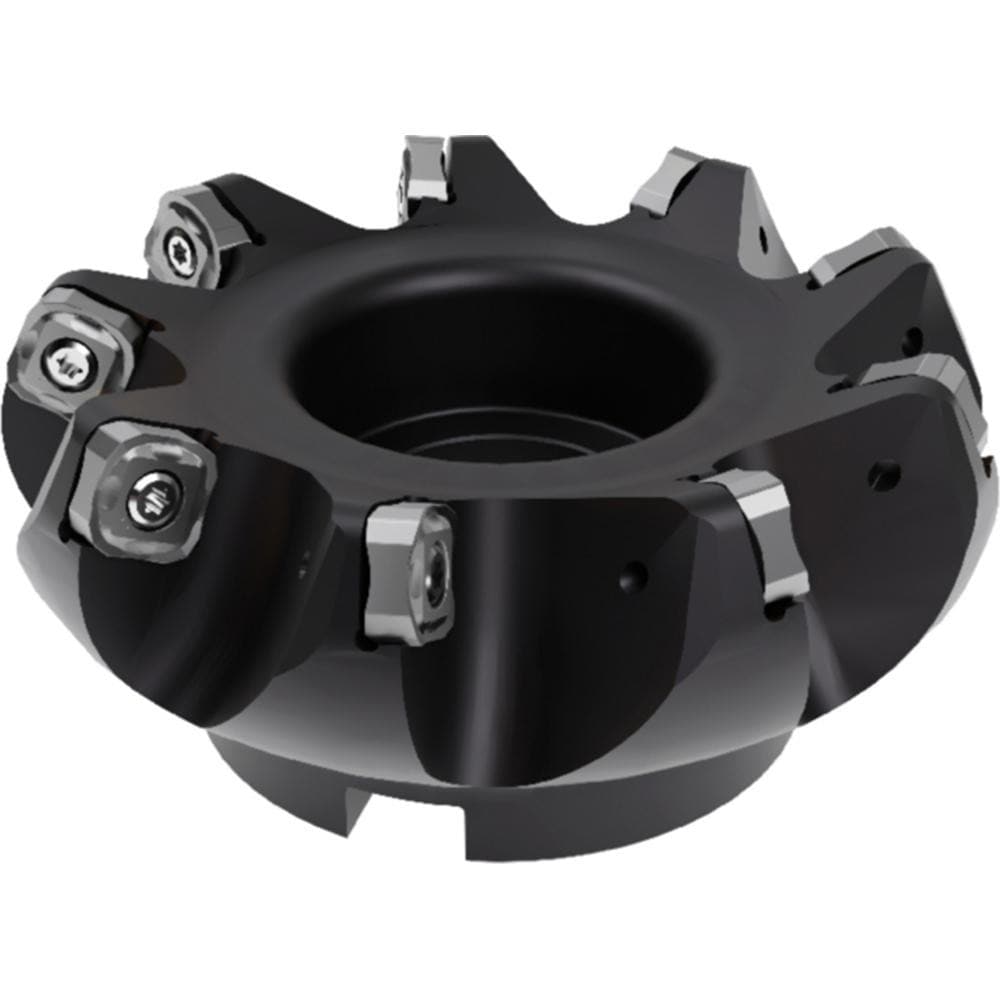

Brand: Widia / Part #: 4102270

Brand: Widia / Part #: 4102270


Item #: 99601072
Brand: Widia
Model #: 4102270

Product Specifications

Minimum Cutting Diameter (mm) 63.00
Maximum Cutting Diameter (mm) 71.88
Maximum Depth of Cut (mm) 9.00
Arbor Hole Diameter (Decimal Inch) 0.8661
Lead Angle 64.000
Compatible Insert Size Code 150612
Cutter Style M8065
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series M8065HD
Hub Diameter (mm) 49.000
Overall Height (Mm - 5 Decimals) 40.00000
Maximum Body Diameter (Decimal Inch) 2.8346
Maximum Body Diameter (mm) 72.00
Tool Application Chamfering; Facing
Tool Performance General Purpose
Primary Workpiece Material Universal
Complete Insert Compatibility SNMX
Toolholder Material Steel
Manufacturers Catalog Number M8065HD063Z05S22SN15
Number Of Cutter Inserts 5
Coolant Through No
Number Of Flutes 5
$464.33
