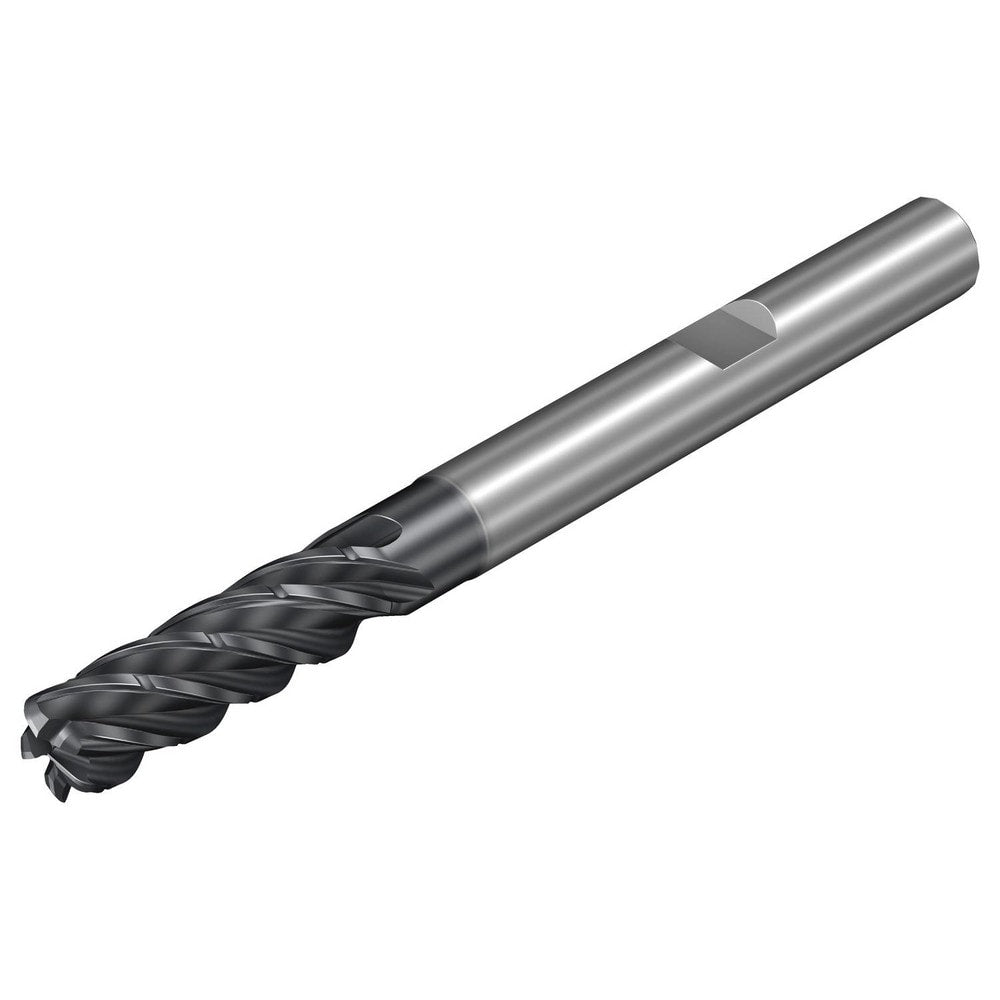

Brand: Sandvik Coromant / Part #: 8213610

Brand: Sandvik Coromant / Part #: 8213610


Item #: 97421648
Brand: Sandvik Coromant
Model #: 8213610

Product Specifications

Mill Diameter (mm) 20.00
Corner Radius (Decimal Inch) 0.1575
Coating/Finish AlCrN
End Mill Material Solid Carbide
Number Of Flutes 5
Single Or Double End Single
Overall Length (mm) 142.0000
Length of Cut (mm) 70.0000
Cutting Direction Right Hand
Coolant Through No
Mill Diameter (Decimal Inch) 0.7874
Flute Direction Right Hand
Overall Length (Decimal Inch) 5.5906
Chipbreaker Yes
End Type Corner Radius
Length Of Cut (Decimal Inch - 4 Decimals) 2.7559
Extended Reach No
Shank Type Weldon Flat
Centercutting Yes
Shank Diameter (Decimal Inch) 0.7874
Shank Diameter (mm) 20.0000
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Stainless Steel
Secondary Workpiece Material Code M
Series CoroMill Dura
Coating Classification PVD
Manufacturers Catalog Number 1K365-2000-400-XD 1730
