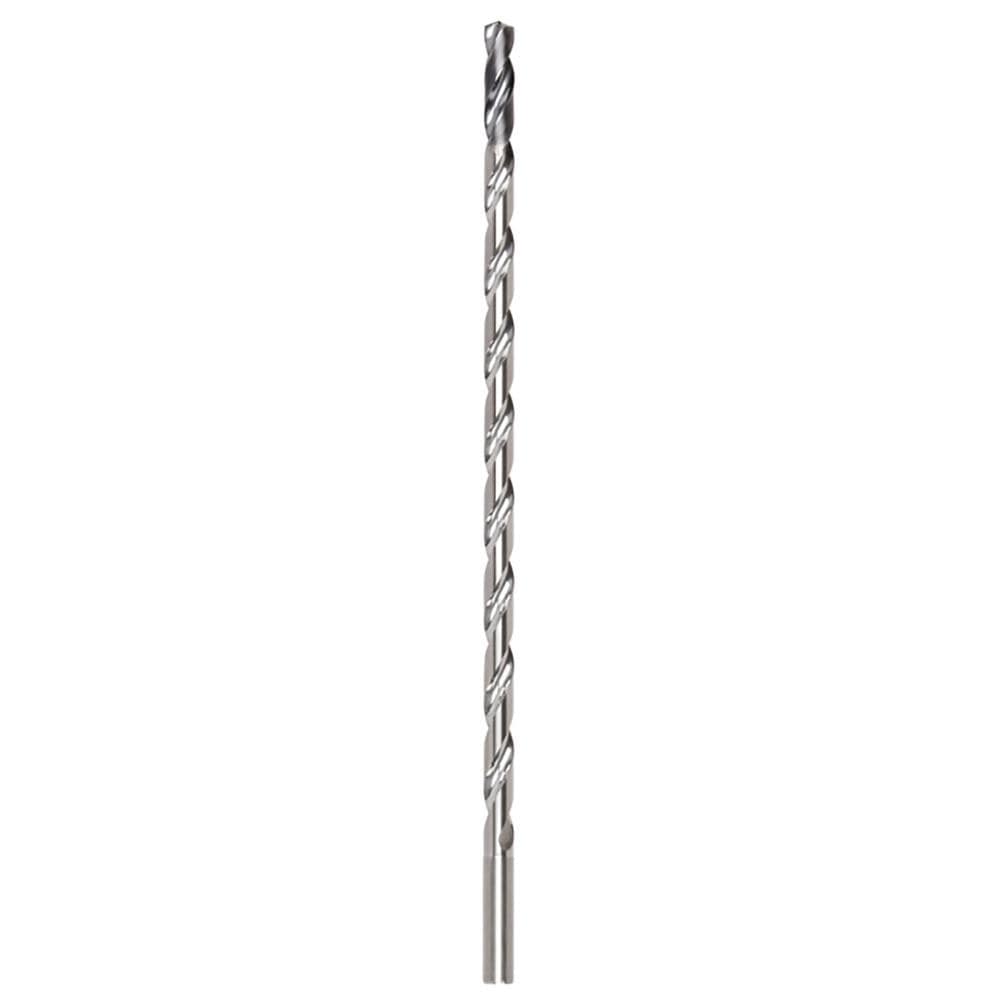

Brand: Widia / Part #: 3899604

Brand: Widia / Part #: 3899604


Item #: 03564630
Brand: Widia
Model #: 3899604

Product Specifications

Drill Bit Size (mm) 9.00
Overall Length (mm) 290.0000
Flute Length (mm) 245.00
Tool Material Carbide
Coating/Finish TiAlN
Drill Point Angle 132
Shank Type Cylindrical
Coolant Through Yes
Flute Type Helical
Series TDD
Point Type TDS
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular Spiral
Drill Bit Diameter Tolerance m7
Number Of Flutes 2
Web Thinning Web-Thinned
Primary Workpiece Material Cast Iron; Steel
Primary Workpiece Material Code P; K
Secondary Workpiece Material Stainless Steel
Secondary Workpiece Material Code M
Drill Bit Grade High Performance
Drill Bit Size (Decimal Inch) 0.3543
Drill Point Length (Decimal Inch) 0.0746
Overall Length (Decimal Inch) 11.4173
Shank Diameter (Decimal Inch) 0.3543
Shank Diameter (mm) 9.0000
Shank Length (Decimal Inch) 9.0000
Shank Length (mm) 42.000
Flute Length (Decimal Inch) 9.6457
Flute By Diameter Ratio 25xD
Maximum Drilling Depth (Decimal Inch) 8.8583
Material Grade WU20PD
$503.23
