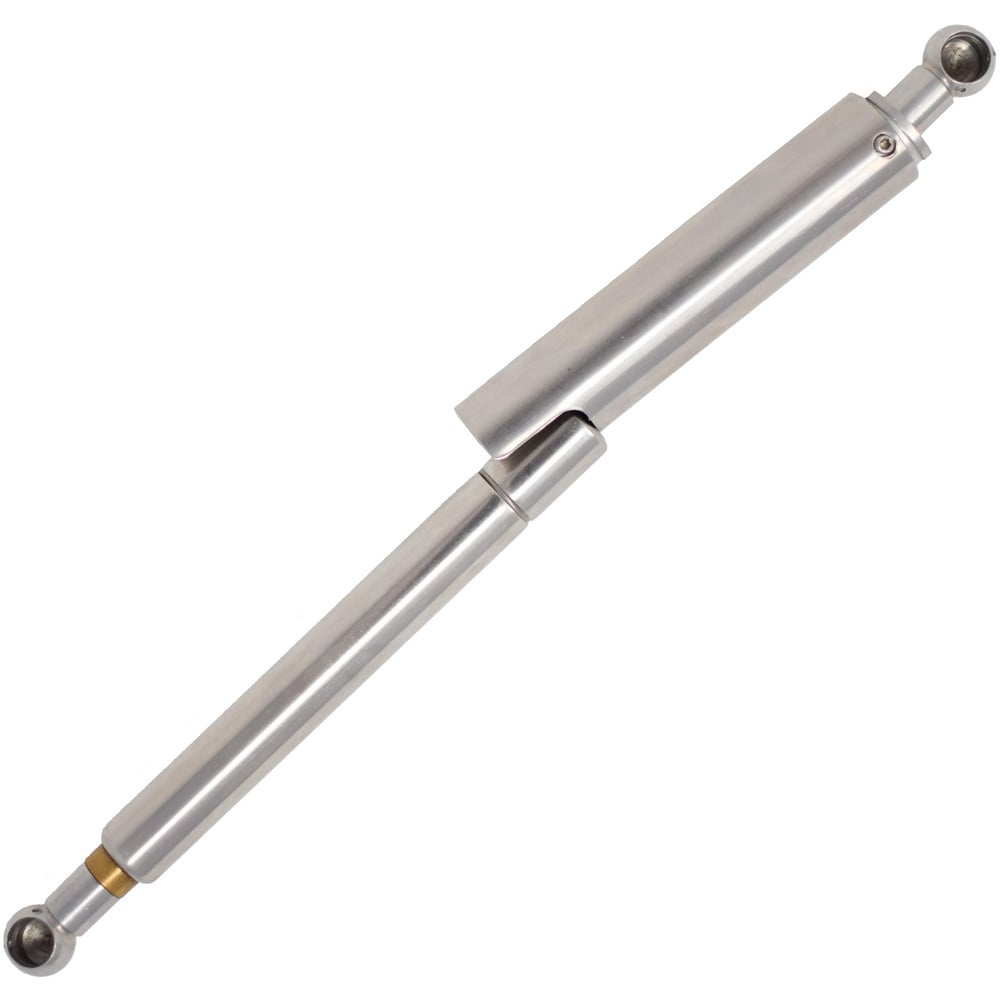

Locking Gas Spring: 60.00 lb Capacity
Item #: 02435782
Brand: Associated Spring Raymond
Model #: MCGSSL215060
Product Specifications
| Fitting Type | Socket End |
| Type | Locking Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (mm) | 8.00 |
| Tube Diameter (mm) | 18.00 |
| End Fitting Connection | Socket End |
| Extended Length (Decimal Inch) | 15.2400 |
| Compressed Length (Decimal Inch) | 9.73 |
| Extension Force | 60 |
| Stroke Length (mm) | 140.00 |
| Force Mechanism | Gas |
| Locking | Yes |
| Working Direction | Extension |
| Capacity (Lb.) | 60.00 |
| Finish Coating | Uncoated |
| UNSPSC Code | 31162800 |
