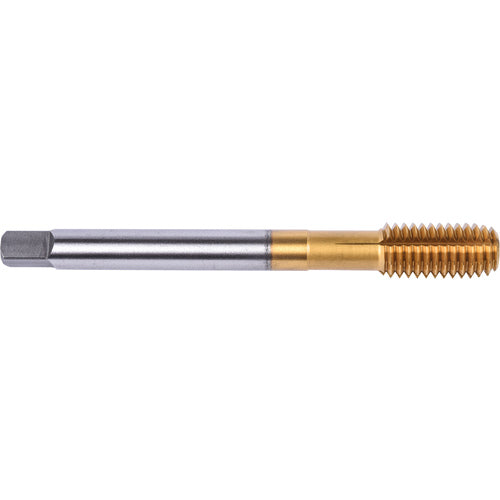

No.4 40 Union Butterfield HSS-PM TiN/Top Applix UNC UNC Machine Forming Tap Fluteless DIN/ANSI E-code # 1681AP4X40
Item #: UB5946204945
Brand: Union Butterfield
Model #: 6204945
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #4 |
| Threads per Inch (TPI) | 40 |
| Overall Length (OAL) | 2.205″ |
| Length Group | 3D |
| Thread Cutting Part Length (THL) | 0.433″ |
| Square Size | 0.11″ |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Measurement Type | Wire Gage |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Semi-Bottoming |
| Tap Standard | DIN|ANSI |
| Cutting Edge Material | HSSCoPM |
| Thread Standard | NC |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Thread Size | #4 - 40 |
| Coating | TiN |
