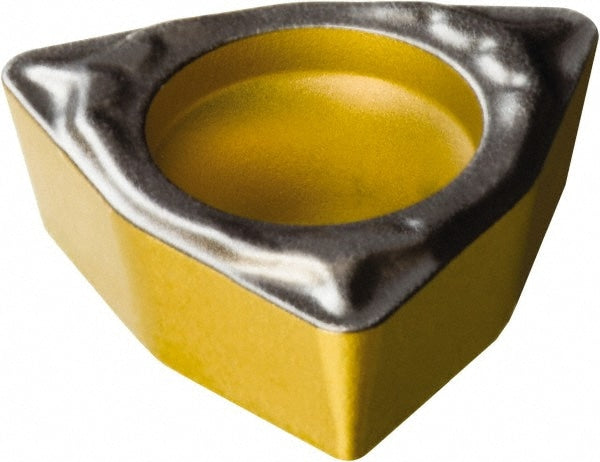

Boring Inserts; Insert Style: WPMT; Insert Size Code: 1.210; Insert Material: Carbide; Manufacturer Grade: 1515; Inscribed Circle (Inch): 5/32
Item #: 54911540
Brand: Sandvik Coromant
Model #: 5757141
Product Specifications
| Insert Style | WPMT |
| Insert Size Code | 1.210 |
| Insert Material | Carbide |
| Manufacturer Grade | 1515 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.20 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Relief Angle | 11 |
| Chipbreaker | T |
| Series | CoroTurn 111 |
| Coating Process | MTCVD |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Primary Workpiece Material Code | P |
| Iso Code | WPMT020102PF1515 |
| Manufacturers Catalog Number | 5757141 |
| Length (Decimal Inch - 4 Decimals) | 0.1028 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| UNSPSC Code | 23242105 |
| Length (mm) | 2.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.0949 |
| Maximum Depth of Cut (mm) | 2.41 |
