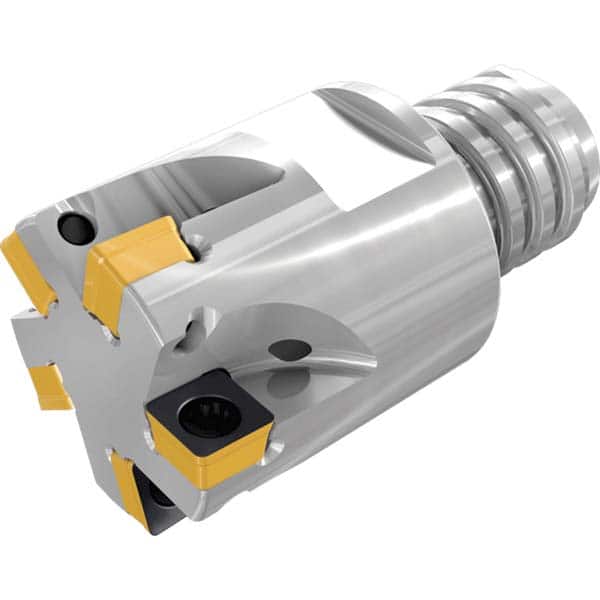

Iscar - Indexable Square-Shoulder End Mills Cutting Diameter (Decimal Inch): 0.6250 Shank Diameter (mm): 19.0500
Item #: 11956109
Brand: Iscar
Model #: 3350639
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 0.6250 ; Shank Diameter (mm): 19.0500 ; Shank Diameter (Inch): 0.75 ; Shank Diameter (Decimal Inch): 0.7500 ; Modular Connection Size: T10 ; Overall Length/Projection (Decimal Inch): 1.2000
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (mm) | 19.0500 |
| Shank Diameter (Inch) | 0.75 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Modular Connection Size | T10 |
| Overall Length/Projection (Decimal Inch) | 1.2000 |
| Series | E90SO |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Weldon Flat | No |
| Modular Connection Thread Size | T10 |
| Shank Length (Decimal Inch) | 1.2000 |
| Shank Length (mm) | 30.500 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Shank Diameter (Inch) | 0.75 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Series | E90SO |
| Overall Length (Decimal Inch) | 1.20000 |
| Insert Holding Method | Screw |
