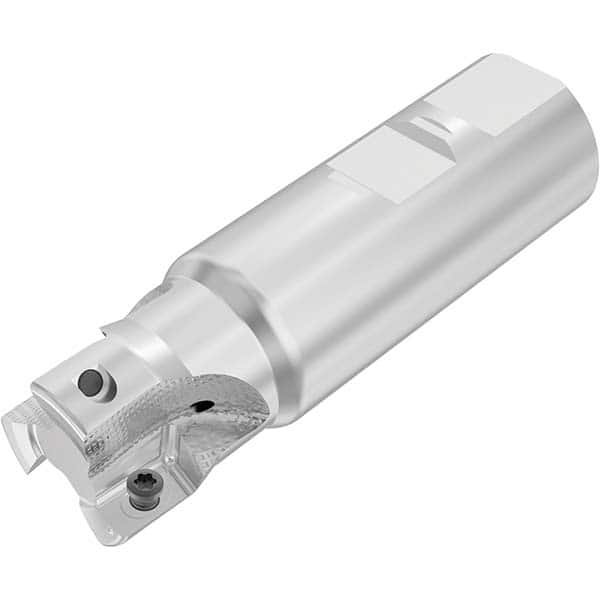

Seco - Indexable Square-Shoulder End Mills Cutting Diameter (Decimal Inch): 1.2500 Cutting Diameter (Inch): 1.25
Item #: 18138958
Brand: Seco
Model #: 03336131
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.2500 ; Cutting Diameter (Inch): 1.25 ; Shank Type: Weldon ; Shank Diameter (Decimal Inch): 1.2500 ; Overall Length/Projection (mm): 110.00 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1.25 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 110.00 |
| Lead Angle | 90 |
| Series | R217.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 1.25 |
| Head Length (mm) | 40.00 |
| Weldon Flat | Yes |
| Insert Compatibility | XOEX; XOMX |
| Shank Length (mm) | 70.000 |
| Maximum RPM | 14800.000 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Series | R217.69 |
| Lead Angle | 90 |
| Insert Compatibility | XOEX; XOMX |
| Insert Holding Method | Screw |
