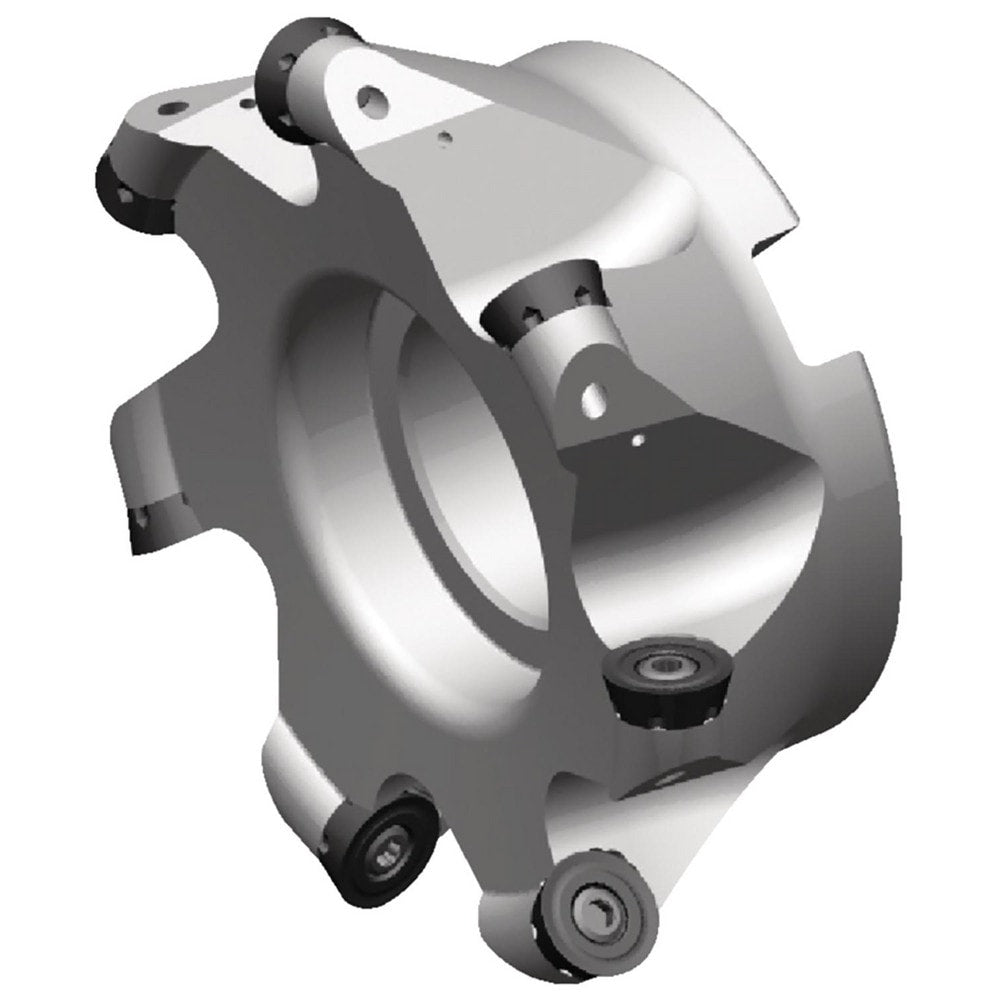

Brand: Widia / Part #: 2646723

Brand: Widia / Part #: 2646723


Item #: 97181200
Brand: Widia
Model #: 2646723

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.3700
Maximum Cutting Diameter (Decimal Inch) 2.0000
Maximum Depth of Cut (Decimal Inch) 0.3150
Arbor Hole Diameter (mm) 0.75
Compatible Insert Size Code RC..1606M0T
Maximum Ramping Angle 12.00 degree
Cutter Style M100
Cutting Direction Right Hand
Insert Holding Method Screw
Series M100
Hub Diameter (Decimal Inch) 1.7000
Overall Height (Decimal Inch) 1.6300
Maximum RPM 15000
Tool Application Profiling; Pocketing; Milling; Slotting; Ramping; Face Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Number Of Cutter Inserts 4
Coolant Through Yes
$397.44
