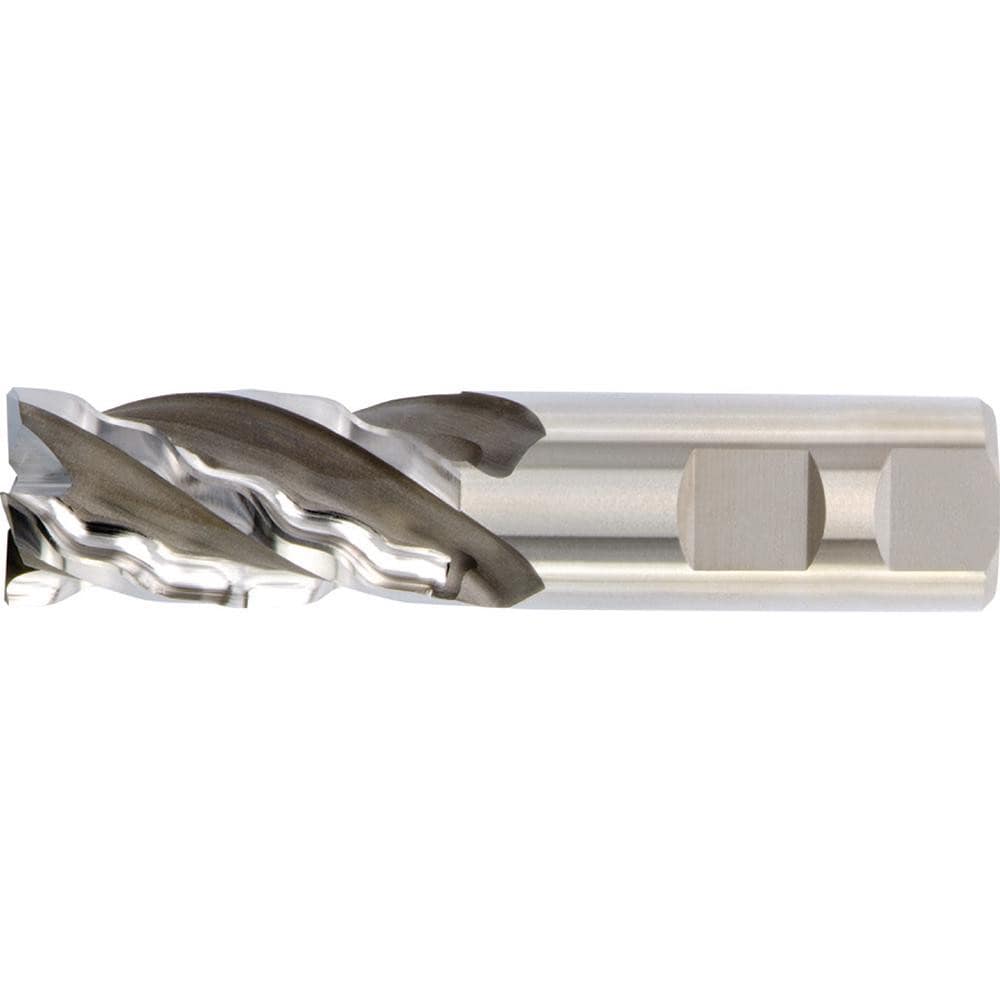

Brand: Widia / Part #: 2709487

Brand: Widia / Part #: 2709487


Item #: 33980632
Brand: Widia
Model #: 2709487

Product Specifications

Mill Diameter (Inch) 1-1/4
Chamfer Width (Decimal Inch) 0.0390
Coating/Finish Bright/Uncoated
End Mill Material Cobalt
Number Of Flutes 6
Single Or Double End Single
Overall Length (Inch) 8-1/2
Overall Length (mm) 8.50
Length of Cut (Inch) 6
Cutting Direction Right Hand
Coolant Through No
Mill Diameter (Decimal Inch) 1.2500
Flute Direction Right Hand
Overall Length (Decimal Inch) 8.5000
Chipbreaker Yes
End Type Single
Chamfer Angle 45
Length Of Cut (Decimal Inch - 4 Decimals) 6.0000
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Weldon Flat
Centercutting Yes
Material Removal Type Roughing
Shank Diameter (Decimal Inch) 1.2500
Shank Diameter (Inch) 1-1/4
Reach Length (Decimal Inch) 6.0000
Reach Length (Inch) 6
Minimum Helix Angle 35.00
Maximum Helix Angle 35.00
Primary Workpiece Material Stainless Steel; Super Alloys & Titanium
Primary Workpiece Material Code S; M
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Series 622W
$398.22
