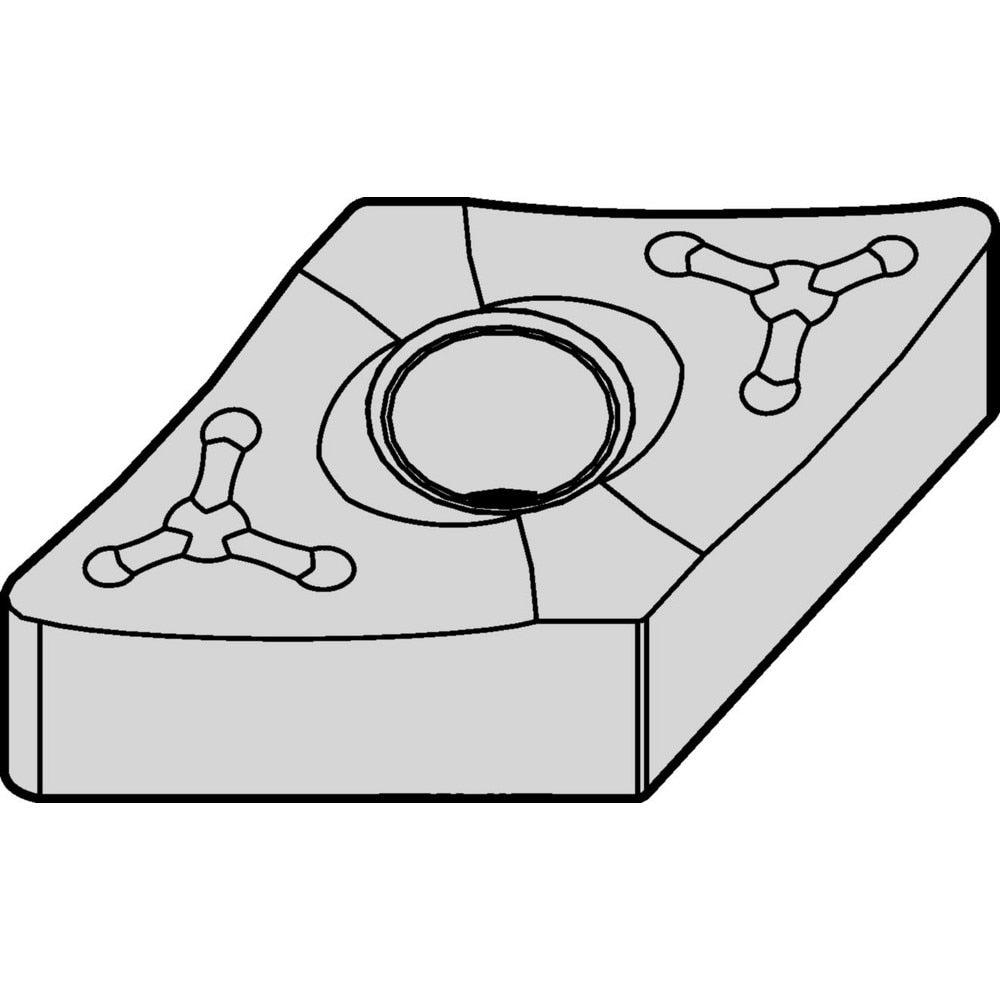

Brand: Widia / Part #: 5698416

Brand: Widia / Part #: 5698416


Item #: 94095551
Brand: Widia
Model #: 5698416

Product Specifications

Insert Style DNMM
Insert Shape Code D
Insert Size Code 443
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.3052
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 55.00
Relief Angle 0.000
Series DNMM
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6104
Number Of Cutting Edges 2
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code DNMM44365
Iso Code DNMM15061265
Manufacturers Catalog Number DNMM44365
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 65
Style DNMM
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$23.27
