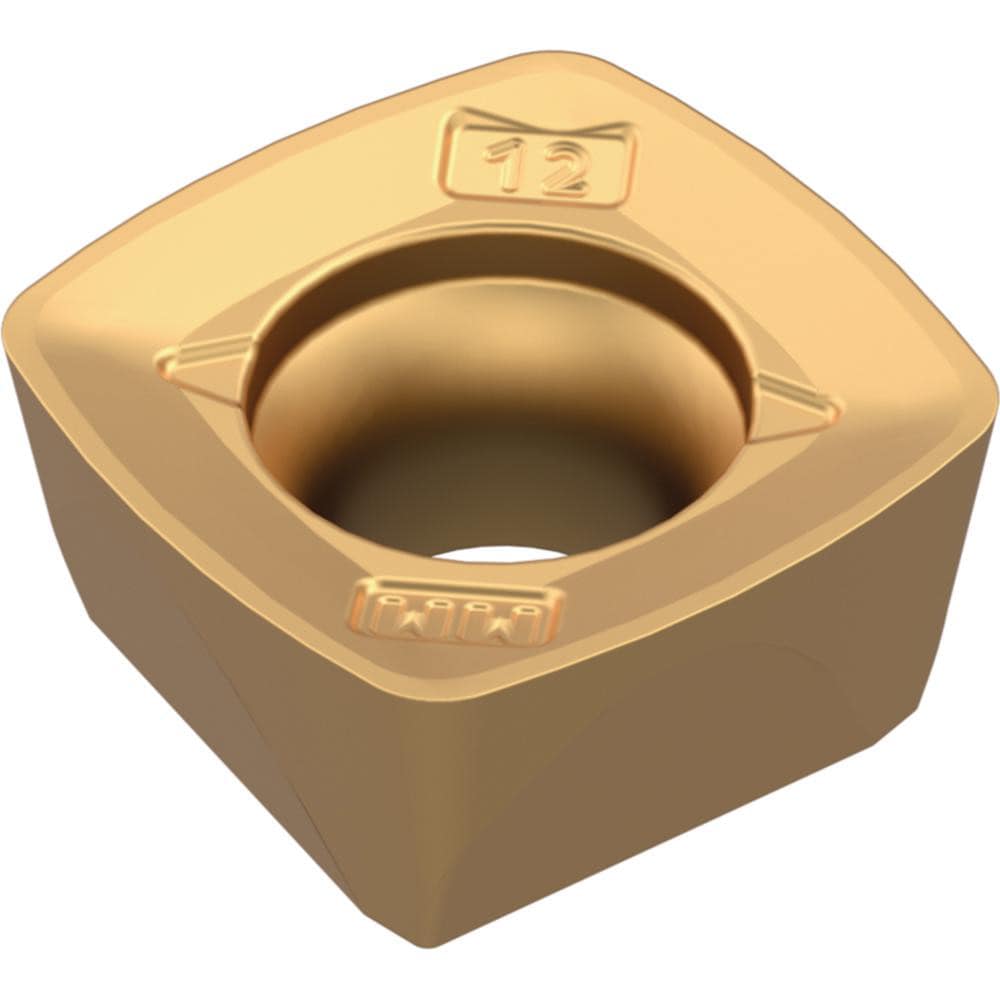

Brand: Widia / Part #: 6596471

Brand: Widia / Part #: 6596471


Item #: 94470838
Brand: Widia
Model #: 6596471

Product Specifications

Insert Style XDPT
Insert Size Code 0904
Insert Size 09
Insert Material Carbide
Manufacturer Grade WP25PM
Thickness (Inch) 3/16
Inscribed Circle (Decimal Inch) 0.3937
Inscribed Circle (mm) 10.00
Corner Radius (Decimal Inch) 0.0472
Corner Radius (Inch) 3/64
Insert Hand Right Hand
Relief Angle 15.000
Series VXF
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1570
Maximum Depth of Cut (Decimal Inch) 0.3937
Number Of Cutting Edges 4
Insert Shape Square
Rake Positive
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Secondary Workpiece Material Hard Material; Cast Iron
Secondary Workpiece Material Code H; K
Ansi Code XDPT090412ERMM
Iso Code XDPT090412ERMM
Manufacturers Catalog Number XDPT090412ERMM
Cutter Series Compatibility VXF XD09
Chip Breaker MM
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Square
Length of Cut (mm) 10.0000
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish AlTiN
Included Angle Degree 90
Length 10.00
Width (Decimal Inch - 4 Decimals) 0.3937
Width (Mm - 2 Decimals) 10.00
Thickness (Decimal Inch - 4 Decimals) 0.1874
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.3937
$14.02
