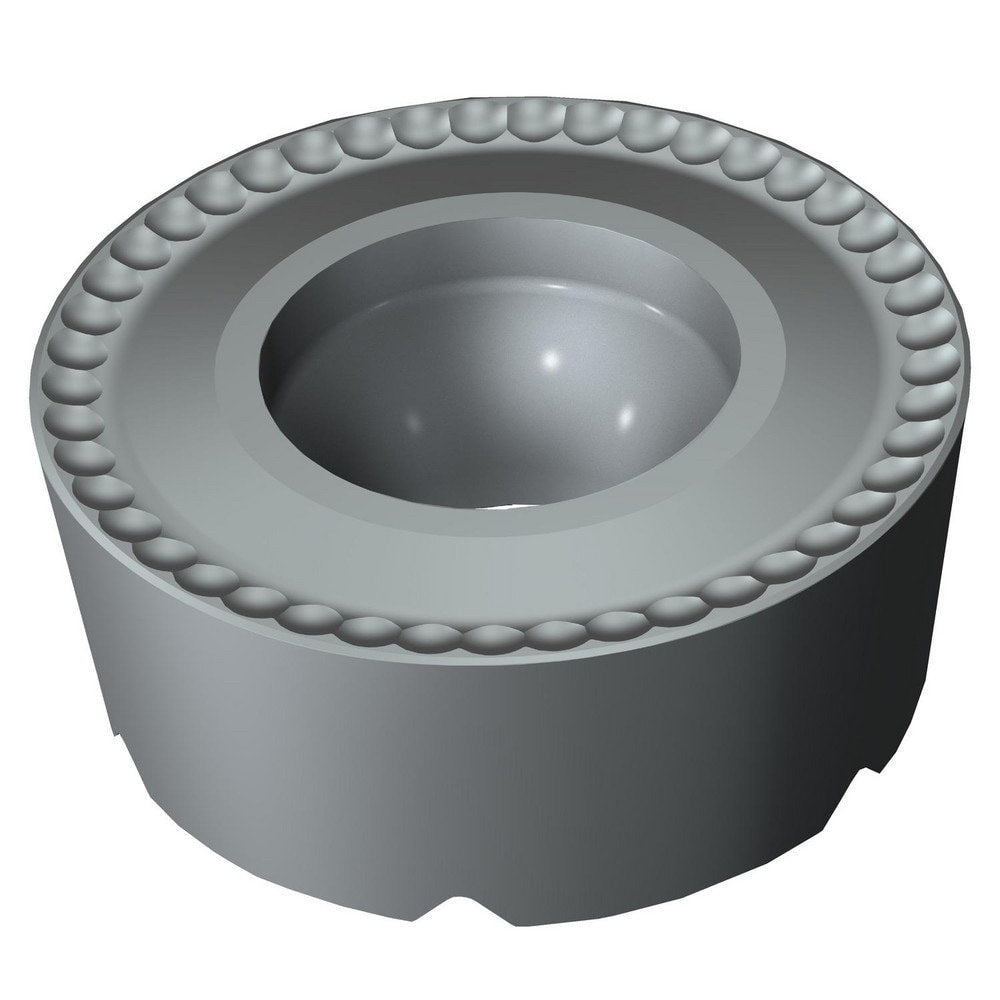

Brand: Sandvik Coromant / Part #: 8267958
Item #: 98803190
Brand: Sandvik Coromant
Model #: 8267958
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 10T3 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | H13A |
| Corner Radius (mm) | 5.00 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Insert Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Clearance Code | C |
| Tolerance Code | M |
| Relief Angle | 7.000 |
| Series | CoroTurn? 107 |
| Coating Process | Uncoated |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | RCMT 10 T3 MP-H7 H13A |
| Iso Code | RCMT 10 T3 MP-H7 H13A |
| Manufacturers Catalog Number | RCMT 10 T3 MP-H7 H13A |
| Cutting Direction | Neutral |
| Stocking Category | Direct Ship |
| Chip Breaker | H7 |
| Style | RCMT |
