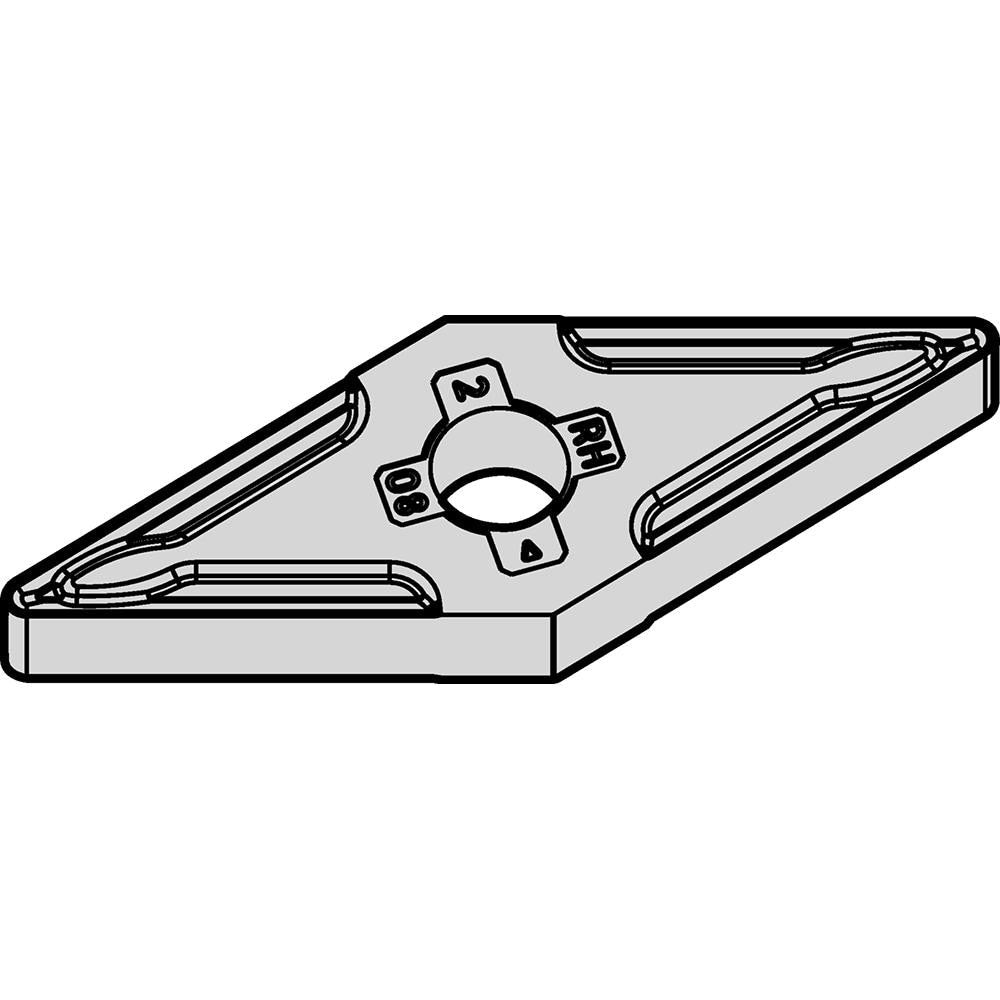

Brand: Widia / Part #: 4171551

Brand: Widia / Part #: 4171551


Item #: 94057395
Brand: Widia
Model #: 4171551

Product Specifications

Insert Style VNMG
Insert Shape Code V
Insert Size Code 432
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.4359
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 35.00
Relief Angle 0.000
Series VNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.8717
Number Of Cutting Edges 4
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code VNMG432RH
Iso Code VNMG220408RH
Manufacturers Catalog Number VNMG432RH
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker RH
Style VNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$11.43
