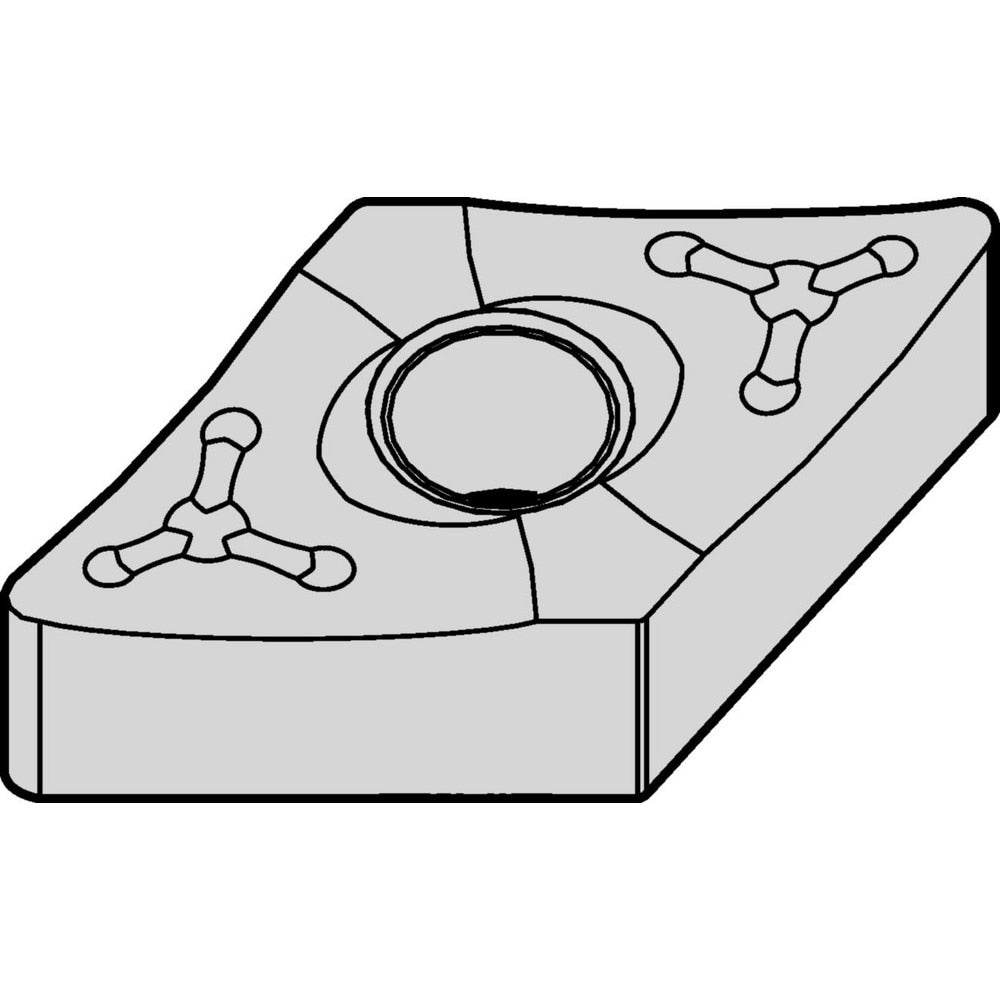

Brand: Widia / Part #: 5698415

Brand: Widia / Part #: 5698415


Item #: 94095767
Brand: Widia
Model #: 5698415

Product Specifications

Insert Style DNMM
Insert Shape Code D
Insert Size Code 442
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WP35CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.3052
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 55.00
Relief Angle 0.000
Series DNMM
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6104
Number Of Cutting Edges 2
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Ansi Code DNMM44265
Iso Code DNMM15060865
Manufacturers Catalog Number DNMM44265
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 65
Style DNMM
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$23.27
