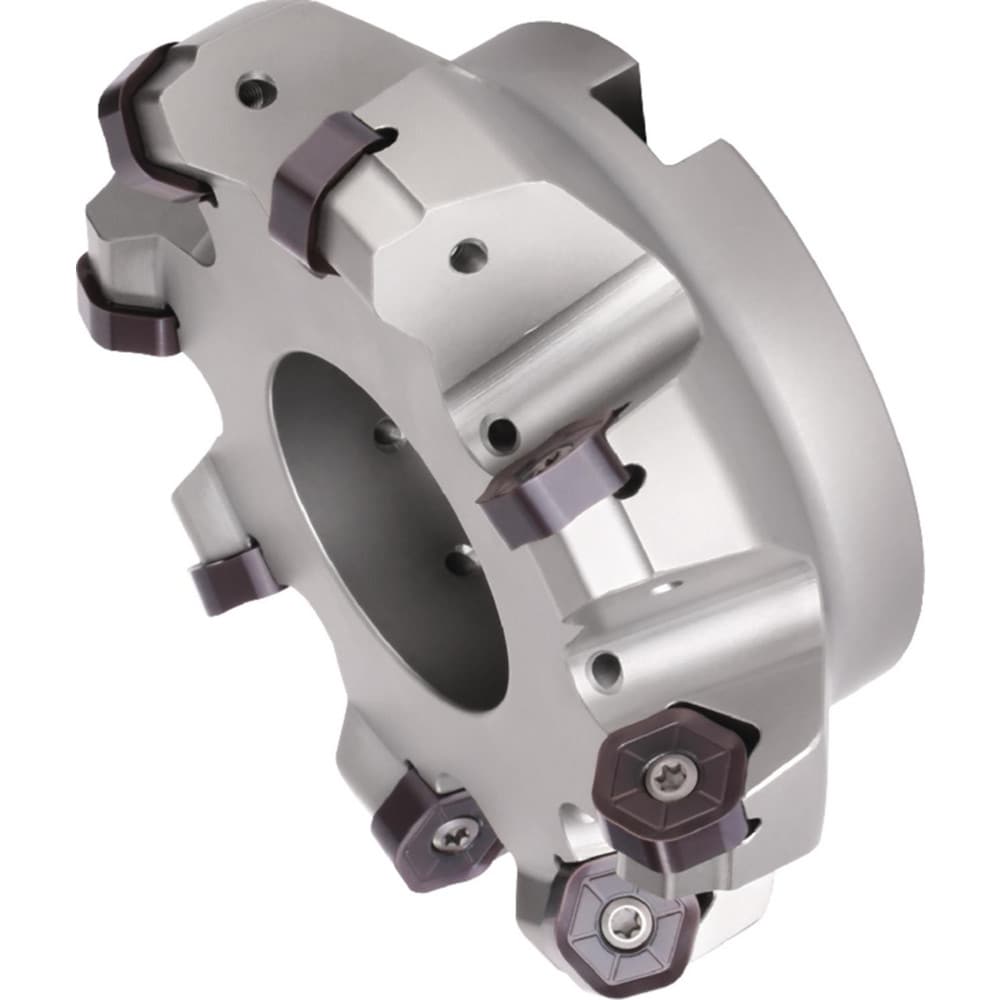

Brand: Widia / Part #: 3954563
Item #: 97211429
Brand: Widia
Model #: 3954563
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 4.7030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | HN..0905 |
| Maximum Ramping Angle | 0.00 degree |
| Cutter Style | M1200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M1200 |
| Maximum Body Diameter (Decimal Inch) | 0.8661 |
| Overall Height (Decimal Inch) | 1.7496 |
| Maximum RPM | 5800 |
| Tool Application | Milling; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Titanium; Steel; Super-Alloy |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Coolant Through | Yes |
