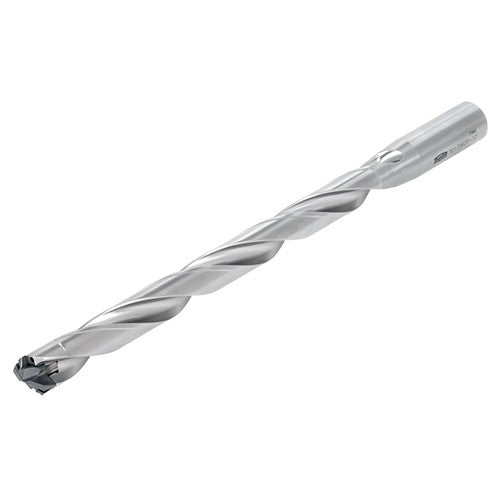

TID145R16-12
Item #: TG256174347
Brand: Tungaloy
Model #: 6174347
| Product Specifications | |
|---|---|
| Usable Length (LU) | 177 mm |
| Shank Length (LS) | 48 mm |
| Application | | General Drilling | |
| Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 14 |
| Master Insert Identification (MIID) | DMP145 |
| Cutting Diameter Minimum (DCN) | 14.5 mm |
| Point Length (PL) | 2.21 mm |
| Cutting Diameter Maximum (DCX) | 14.9 mm |
| Body Material | Steel |
| Overall Length (OAL) | 241.95 mm |
