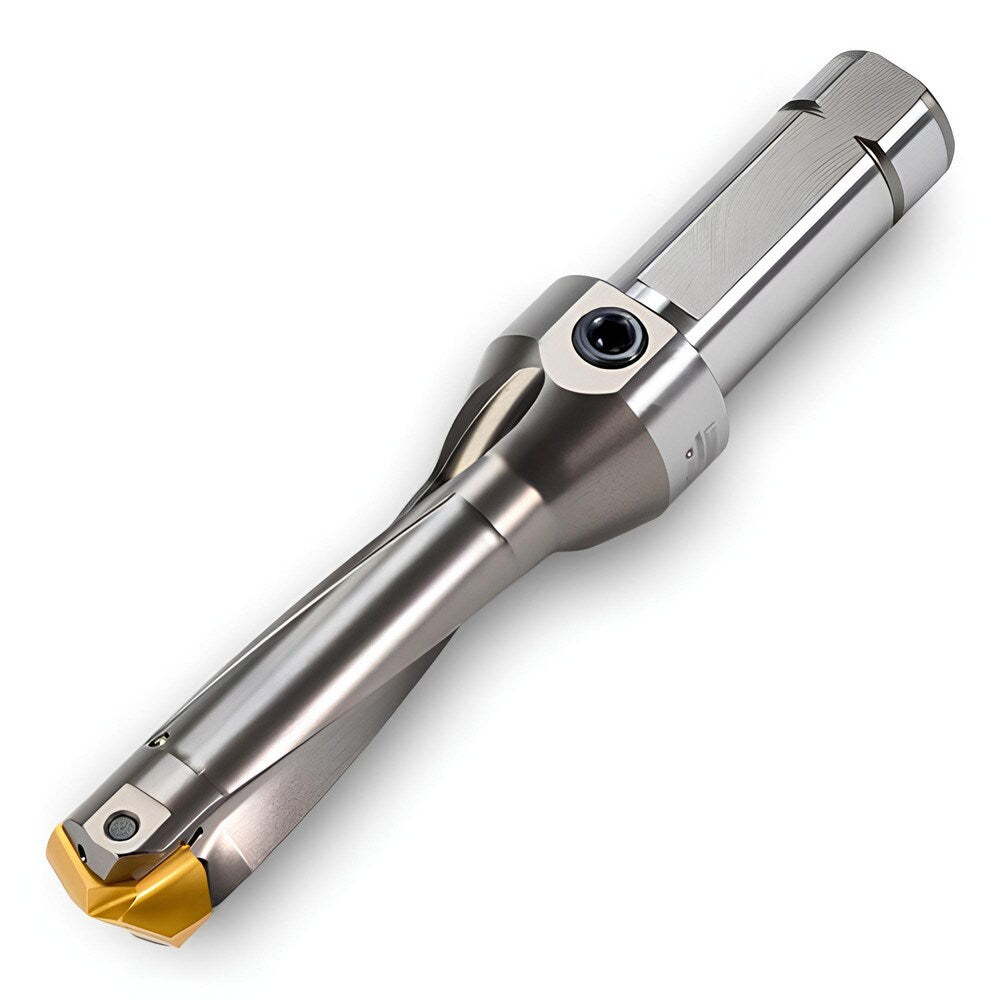

Brand: Ingersoll Cutting Tools / Part #: 6146023
Item #: 47026364
Brand: Ingersoll Cutting Tools
Model #: 6146023
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.5748 |
| Maximum Drill Diameter (Decimal Inch) | 1.6496 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 4.9800 |
| Shank Type | Flatted |
| Insert Style | LPA |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 40; 41 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Compatible Insert Size Code | 4130; 4000; 4100; 4050 |
| Overall Length (Decimal Inch) | 10.4190 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 7.2590 |
| Body Length (Decimal Inch) | 7.2590 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
