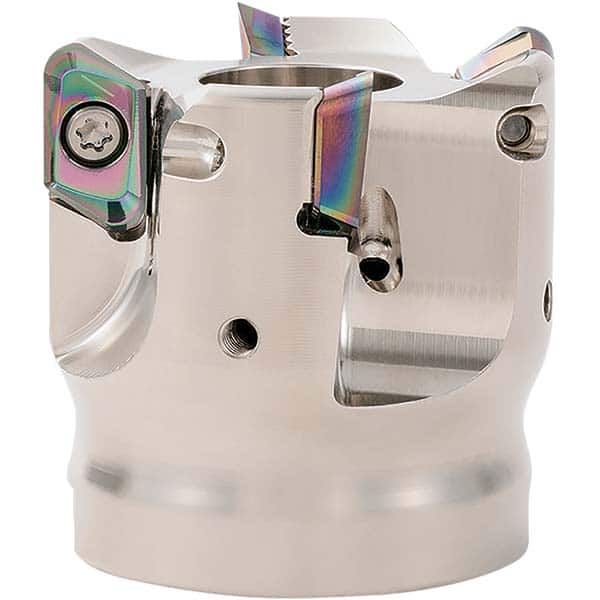

Kyocera - Indexable Chamfer & Angle Face Mills Cutting Diameter (Inch): 2.0000 Cutting Diameter (mm): 50.80
Item #: 17963653
Brand: Kyocera
Model #: 8865189
Product Specifications
Indexable Chamfer & Angle Face Mills; Cutting Diameter (Inch): 2.0000 ; Cutting Diameter (mm): 50.80 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (mm): 19.05 ; Arbor Hole Diameter (Inch): 0.7500 ; Arbor Hole Diameter (Decimal Inch): 0.7500
| Cutting Diameter (Inch) | 2.0000 |
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 0.7500 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | KCGT FR-AL |
| Series | MEAS |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Insert Holding Method | Clamp Screw |
| Cutter Style | MEAS |
| Number of Flutes | 4 |
| Cutting Rake Angle | -10 (Radial) |
| Rake | Negative |
| Keyway Width (mm) | 7.9500 |
| Keyway Width (Decimal Inch) | 0.3130 |
| Maximum RPM | 36000.000 |
| Cutting Direction | Right Hand |
| Pitch | Standard |
| Toolholder Material | Steel |
| Insert Holding Method | Clamp Screw |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum RPM | 36000.000 |
| Minimum Cutting Diameter (mm) | 50.80 |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Toolholder Style | MEAS |
