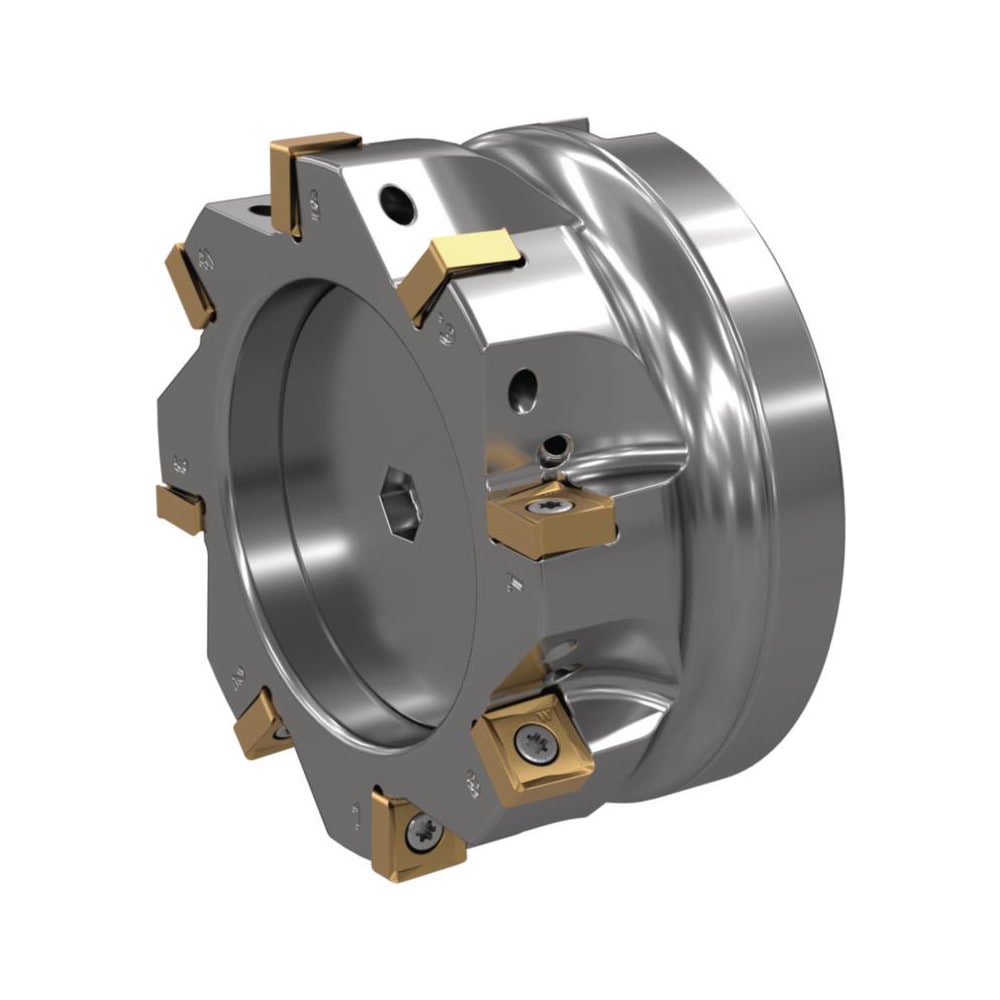

Brand: Widia / Part #: 6596138

Brand: Widia / Part #: 6596138


Item #: 09785718
Brand: Widia
Model #: 6596138

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 4.0000
Maximum Cutting Diameter (Decimal Inch) 4.0000
Maximum Depth of Cut (Decimal Inch) 0.3872
Arbor Hole Diameter (Decimal Inch) 1.5000
Compatible Insert Size Code SNHX1204..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Radial); Positive (Axial)
Rake Angle -12.900
Series VSM890
Maximum Body Diameter (Decimal Inch) 3.8489
Overall Height (Decimal Inch) 2.0000
Keyway Width (mm) 16.13
Hub Diameter (Decimal Inch) 3.8100
Maximum RPM 15700.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM890D400Z06S150SN12
Coolant Hole Diameter (Decimal Inch) 0.1181
Complete Insert Compatibility SNHX120408PNERMM
Toolholder Material Steel
Manufacturers Catalog Number VSM890D400Z06S150SN12
Coolant Through Yes
Number Of Cutter Inserts 6
Number Of Flutes 6
$641.14
