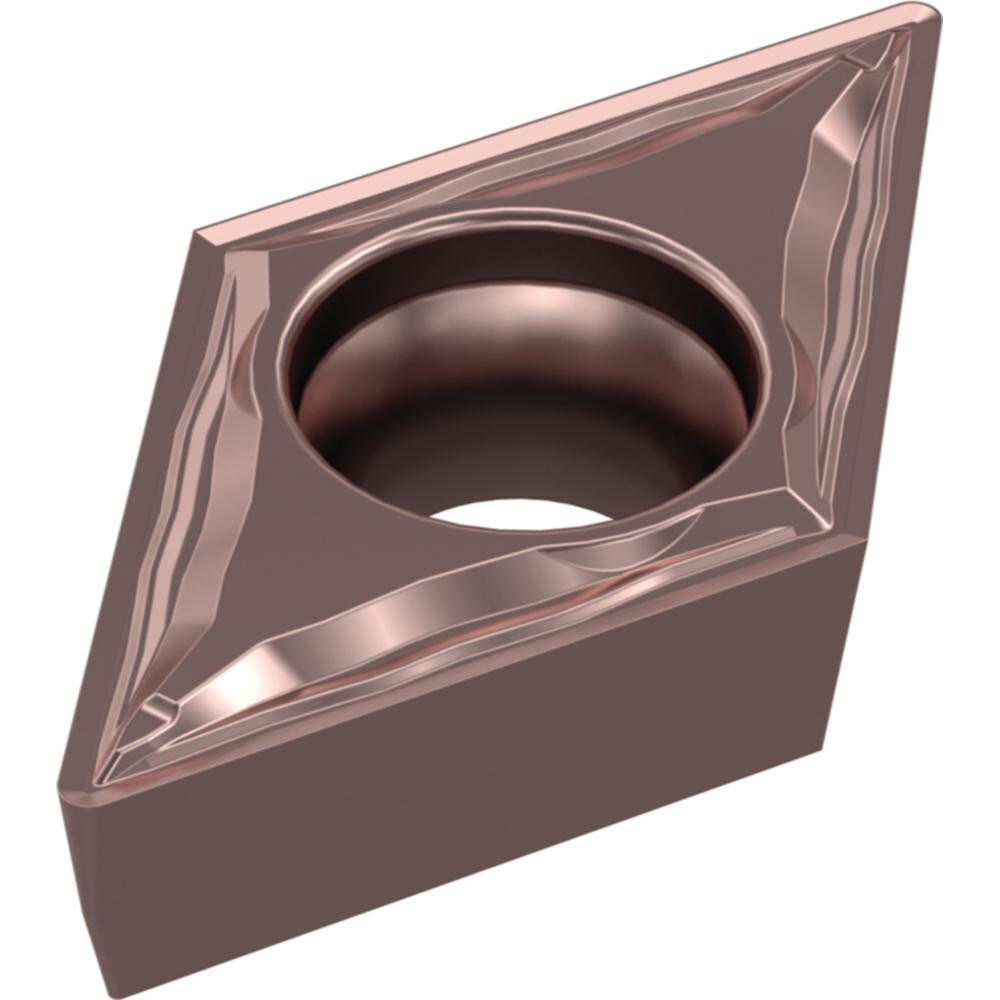

Brand: Widia / Part #: 4168788

Brand: Widia / Part #: 4168788


Item #: 94079746
Brand: Widia
Model #: 4168788

Product Specifications

Insert Style DCMT
Insert Shape Code D
Insert Size Code 2151
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.1526
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code M
Included Angle 55.00
Relief Angle 7.000
Series DCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.3052
Number Of Cutting Edges 2
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code DCMT2151FP
Iso Code DCMT070204FP
Manufacturers Catalog Number DCMT2151FP
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker FP
Cutting Edge Style Sharp
Style DCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.29
