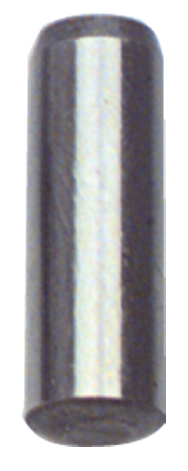

M6 Dia. - 16 Length - Standard Dowel Pin

Item #: SM5060150
Manufacturer: Brighton Best
Mfg #: 536078

Technical Specifications:
*Box Qty.: 100 *Brand Name: Brighton Best *Diameter: M6 *Length: 16 *Material: Heat Treated Alloy Steel *Pin Style: Standard

Description:
*Metric Dowel Pins *A solid headless straight pin with a closely controlled diameter *One end is chamfered with the other end radiused to form a crown. *Precise tolerances of dowel pins make them excellent for achieving proper alignment of parts in high-speed assemblies *DiN 6325 *Heat treated to RC 60 min. - surface *RC 47-58 - core *World Class Quality

Shipping Info:
*Actual Weight - .0110 *Dimensions - Height: 1.80 Length: 3.50 Width: 2.30
