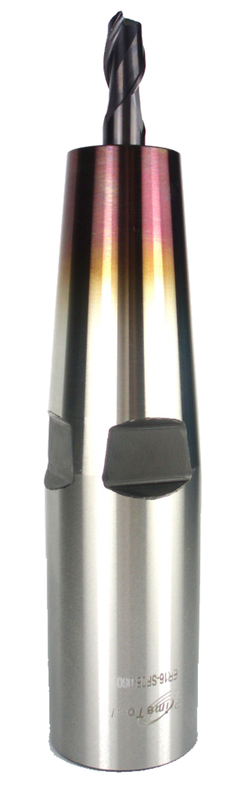

IR16-SF10-060-4.5° Shrink Fit Chuck

Item #: SG81ER16010060
Manufacturer: Prime Tool
Mfg #: T12ER16A22

Technical Specifications:
*Base Coupling OD: 1.102 / 28mm *Base Coupling Size: IR16 *Brand Name: Prime Tool *Dimension D1: 1.102 / 28mm *ER Collet Nut: SF10 *Front OD: 0.945 / 24mm *Length: 2.362 / 60mm *Neck Length: 0.984 / 25mm *Overall Length: 4.488 / 114mm *Shank Size: 0.394 ./ 10mm *Weight: .90405 lbs *Wrench: T07ER1601

Description:
*Precision Ground Pilot and Threads *Shaft Tolerance: H3 *Case Hardness: HRC 56 +/-2 *Seat Runout: 0.003mm (0.00012") *Balance: G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - .9040
